BSC014N04LS
BSC014N04LS
Ratings:
( 527 Reviews )
BSC014N04LS
Unit Price: $ 1.38
MOQ: 10    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

BSC014N04LS 40V product families feature the industry’s lowest RDS(on) and a perfect switching behavior for fast switching applications. In addition, 15% lower R DS(on) and 31% lower figure of merit (RDS(on) * Qg) compared to alternative devices have been realized by advanced thin wafer technology.

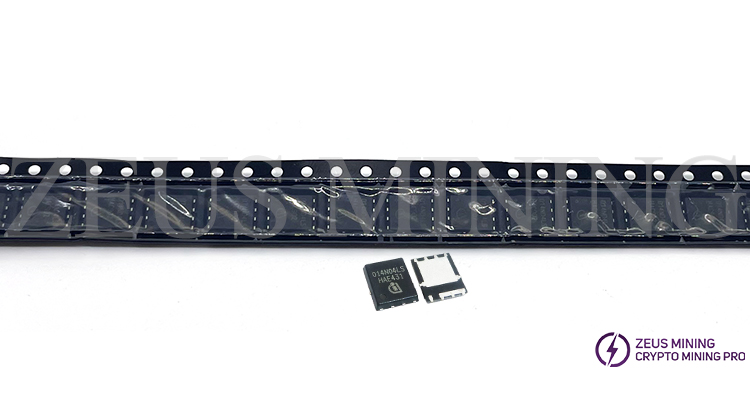

BSC014N04LS chip

Product parameters:

Type designator: BSC014N04LS

Marking code: 014N04LS

Type of transistor: MOSFET

Type of control channel: N -Channel

Maximum power dissipation (Pd): 2.5W

Maximum drain-source voltage |Vds|: 40V

Maximum gate-source voltage |Vgs|: 20V

Maximum gate-threshold voltage |Vgs(th)|: 2V

Maximum drain current |Id|: 32A

Maximum junction temperature (Tj): 150°C

Total gate charge (Qg): 31nC

Rise time (tr): 9nS

Drain-source capacitance (Cd): 1200pF

Maximum drain-source on-state resistance (Rds): 0.0014 Ohm

Package: PG-TDSON-8

BSC014N04LS TDSON-8 FL

Product features:

Optimized for synchronous rectification

Very low on-state resistance RDS(on)

100% avalanche tested

Superior thermal resistance

N-channel, logic level

Qualified according to JEDEC for target applications

Pb-free lead plating; RoHS compliant

Halogen-free according to IEC61249-2-21

Higher solder joint reliability due to enlarged source interconnection

BSC014N04LS Power MOSFET 40V

Applications:

Synchronous rectification

Solar micro-inverter

Isolated DC-DC converters

Motor control

Or-ing switches
