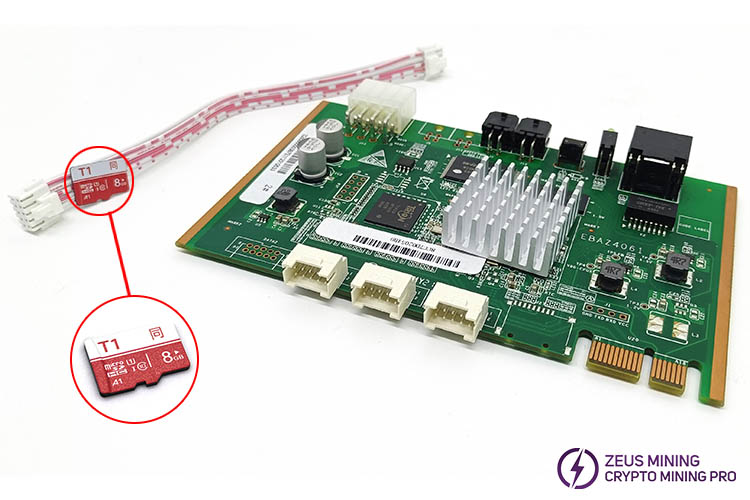

This Ebit universal test fixture is a testing instrument to detect the state of the faulty ASIC chip of the E9 E10 E12 Series hash board. Using this fixture can quickly troubleshoot faulty chips on the hashboard, ensure us to quickly and accurately replace faulty ASIC chips, and ensure that the hashboard resumes normal operation. Our fixtures will undergo rigorous testing before delivery, which has ensured that miners can quickly start using them after receiving the goods. If the goods are damaged during delivery, please contact our sales for return and replacement.

Product advantages:

1. The fixture is independently developed and sold by ZEUS MINING;

2. In addition to ASIC chip failures, it can also be used to troubleshoot temperature sensor failures, boost failures, LDO failures, CRC hash rate failures, etc.;

3. Connect the fixture to the computer via an Ethernet cable to view the complete hash board fault log.

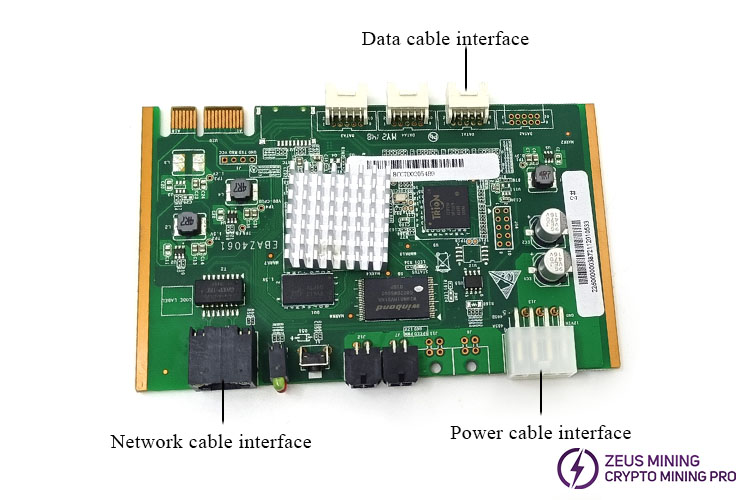

Interface description:

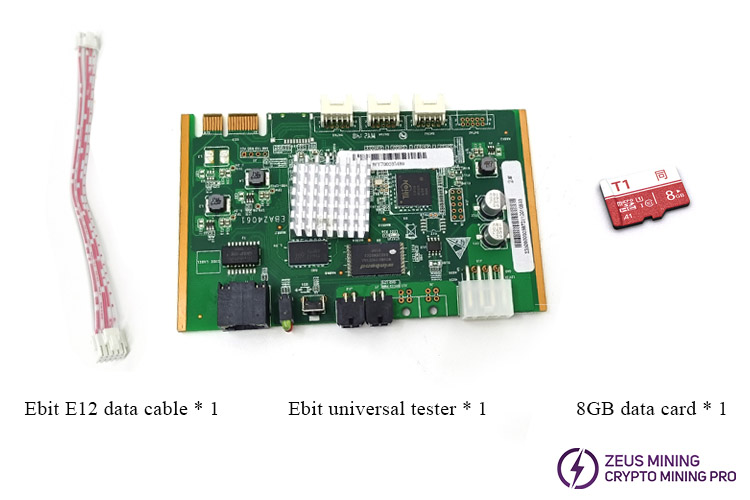

Product lists:

To use this fixture, we also need to use Hash board cooling base 1800RPM, APW3++ power supply, 3030D DC power supply, Alligator clip power cable 6mm, Category 5e 8-core Gigabit Ethernet cable, 4 in 1 USB 2.0 to RJ45 Ethernet adapter, among which:

1) Hash board cooling base 1800RPM is used to help the hash board repair and heat dissipation;

2) APW3++ power supply is used to power the fixture;

3) 3030D DC power supply is used to power the hash board;

4) The Alligator clip power cable 6mm is used to connect the KPS3030D power supply and the hash board.

5) A Category 5e 8-core Gigabit Ethernet cable connects the fixture to the computer. If the computer is a USB interface, a 4 in 1 USB 2.0 to RJ45 Ethernet adapter is also required.

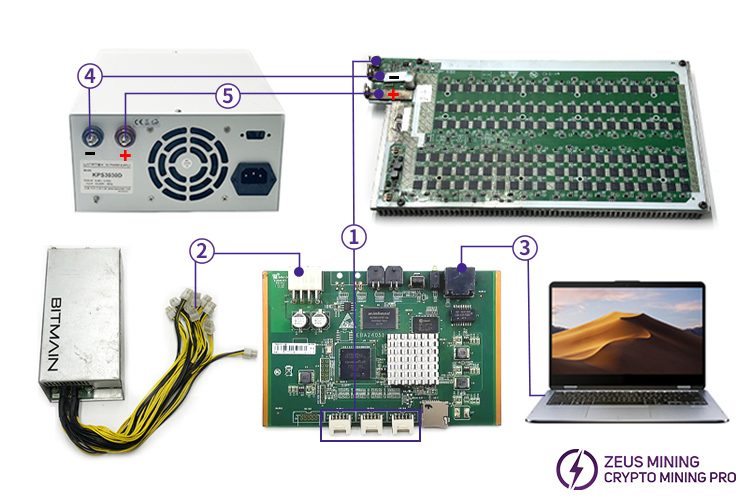

Connection diagram:

① Test fixture cable: connected to the test fixture and hash board;

② 12V powering adapter: use APW3+ power supply to power the fixture;

③ Network cable: connected to the tester and the computer Network or USB port.

④ and ⑤ Alligator clip power cable 6mm: connect the positive and negative electrodes of the voltage regulating power supply and the hash board respectively;

How to use Ebit universal test fixture?
