| Unit Price: | $ 59 |
WhatsApp : +8618623251355
Telegram : @zeusmining_presalesFaulty chips detect device test fixture A11 series hashboard testing tool, which can quickly locate the faulty chip on the A11 series hash board, improve the maintenance efficiency, and reduce the loss of profits caused by downtime.

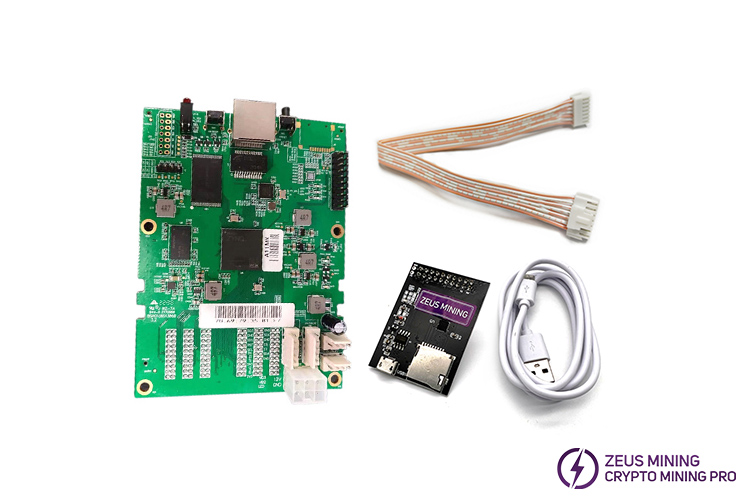

Product List:
Innosilicon A11 control board * 1
Innosilicon test board * 1
TF card with file * 1
Data cable * 1
14 pin cable * 1
INNOSILICON A11 Series Test Fixture Tutorial
1. Format the TF card into FAT32 mode, copy the test files to the TF card, and then install the TF card into the card slot of the test board.
2. Connect the control board and the test board.

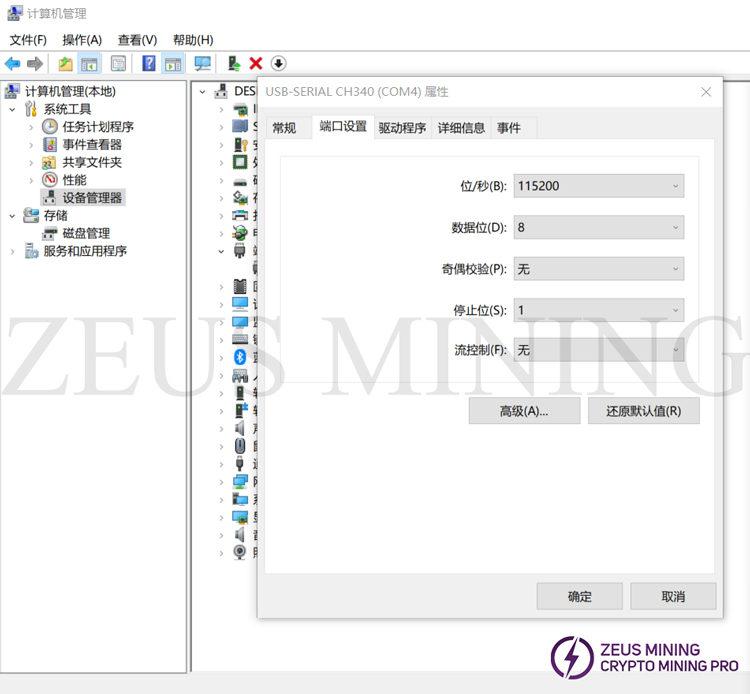

3. Use the USB cable to connect the test board and the computer port, open the device manager of the computer, find the corresponding port, and set the port baud rate to 115200.
4. Use the 14P data cable to connect the hash board and control board.
5. Use the miner PSU to connect the control board and hash board (temporarily power off).

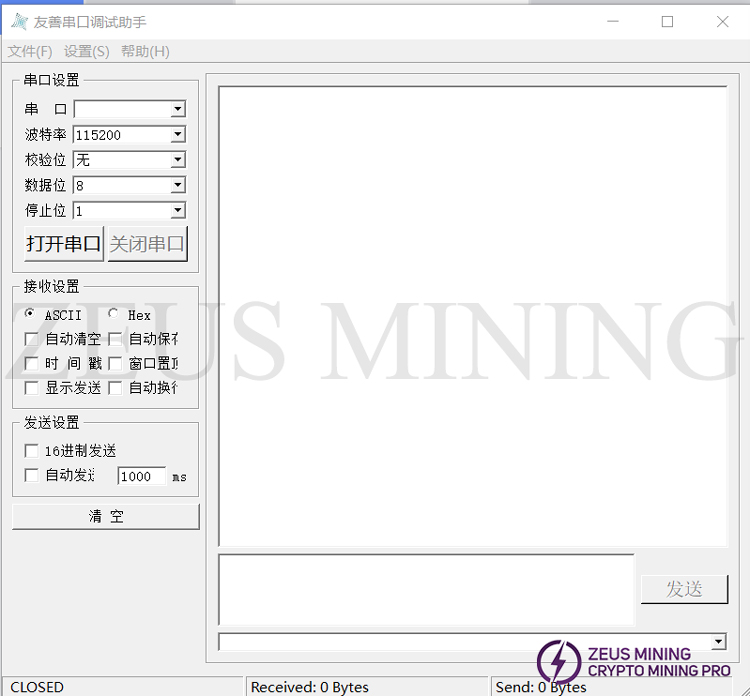

6. Open the innosilicon test serial port software, select the corresponding port, and set the baud rate to 115200, and finally click "Open serial port", and power on the control board and the hash board at the same time, and the test software will start the automatic test.
