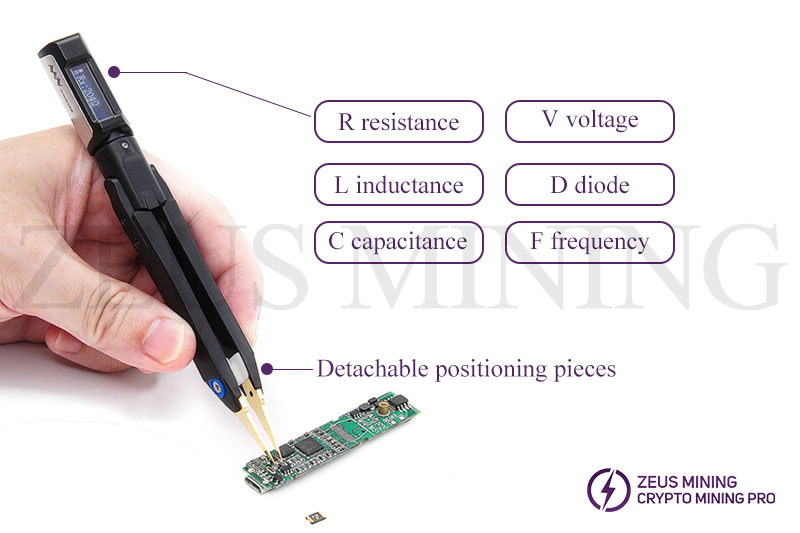

Telegram : @zeusmining_presalesDT71 Mini Digital Smart Tweezers LCR Meter Signal Generator SMD Tester Resistor The DT71 mini digital tweezers adopts an innovative all-in-one detachable mechanical design, combining a pair of gold-plated tweezers and a digital adaptive LED tester in one instrument, it is a brand new tweezers type digital tester. DT71 integrates LCR meter and signal generator, supports resistance, capacitance, inductance, voltage, frequency, diode measurement and sine/noise/pulse user frequency signal output.
Features
1. Innovative ternary structure: divided into controller, test arm and tweezers, which can be flexibly replaced and combined.

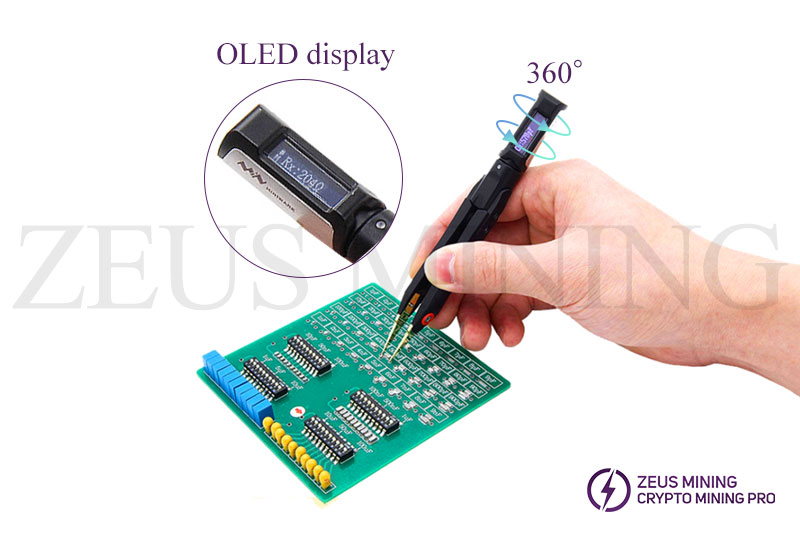

2. 360° rotatable controller, OLED screen, full viewing angle display.
3. Intelligent attitude judgment, built-in angular velocity sensor, automatically recognize left and right hand operations and adjust the screen orientation accordingly
4. Hidden touch buttons on the top of the controller, easy to operate with a touch

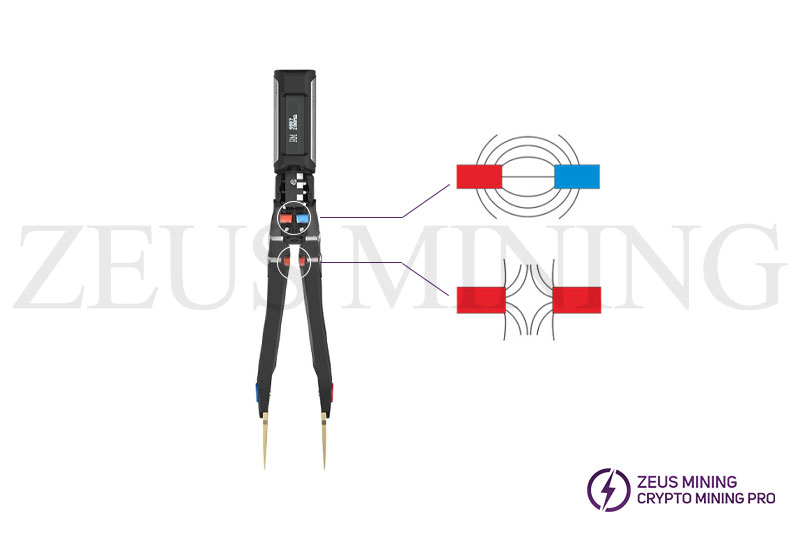

5. The test arm uses magnetic elastic to provide an easy-grip, ergonomic and durable structure
6. The test arm has built-in dual lithium batteries, which balance the arms and provide longer standby time

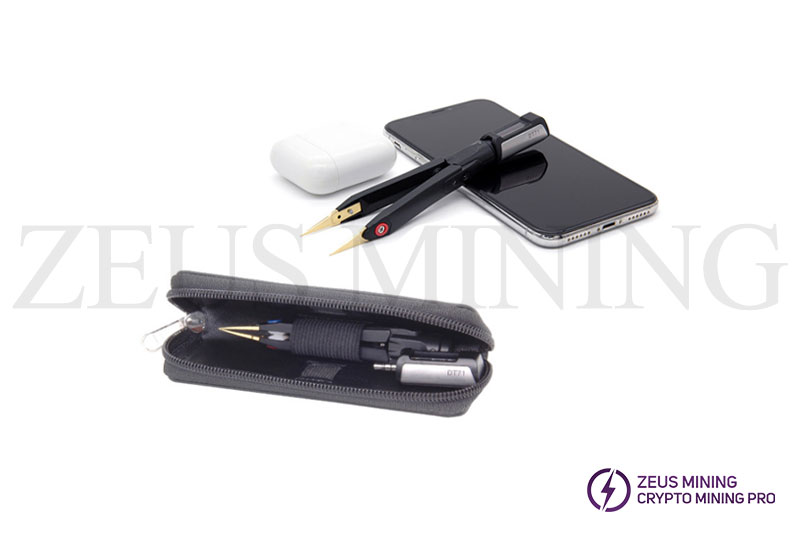

7. The challenge is exquisite and compact, easy to carry anytime, anywhere.
8. Minimalist button-free design, innovative hidden touch operation, you can switch modes with one click (touch: switch function options; long press: switch sub-menu).
Product parameters | |||
Working time | One charge (2 hours), can be used continuously for 10 bears | ||
Display | 96*16 OLED | ||
Size | Control terminal | 47mm | |
Measuring arm | 106mm | ||
Weight | 22g | ||
Operate | Hidden touch buttons | ||
Measurement parameters | Measuring Scope | Sensitivity | Accuracy |
Resistance | 0.1Ω-1kΩ | 0.1Ω | 0.5%+2 |
1kΩ-2000kΩ | 1kΩ | 0.5%+2 | |
Capacitance | 0.1pF-1000pF | 0.1pF | 2%+3 |
0.001uF-400uF | 0.001uF | 2%+3 | |
Inductor | 0.1uH-1000uH | 1uH | 5%+3 |
1mH-50mH | 1mH | 5%+3 | |
Voltage | 1mV-100mV | 1mV | 2%+5 |
0.1V-40V | 0.1V | 1%+3 | |
Frequency | 10Hz-1KHz | 10Hz | 0.1%+3 |
1KHz-20000KHZ | 1KHZ | 0.1%+3 | |
Diode | Ordinary silicon diode, Schottky diode, LED (forward voltage 0.1~3V) | 0.1V | 1% |
Maximum input voltage | ~5V - +50V | ||
Impedance | 1MΩ | ||
Function | ||
Automatic Identification | YES | |
Specify measurement | YES | |
Continuity and Diode Detection | YES | |

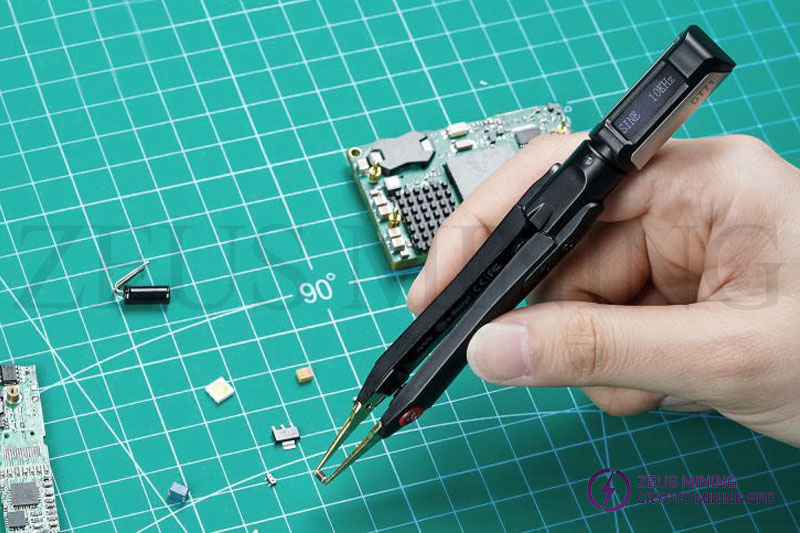

Signal generator | sine wave | Support frequency: 10KHz, 5KHZ, 2KHZ, 1KHz, 500Hz, 200Hz |
noise wave | Currently the frequency only supports 100KHz | |
custom wave | Support frequency: 10KHz, 5KHZ, 2KHZ, 1KHz, 500Hz, 200Hz | |
pulse wave | Support frequency: 100KHz, 50KHZ, 20KHZ, 10KHz, 5KHz, 2KHz, 1KHz, 500Hz | |
