NSi6602B
NSi6602B
NSi6602BNSi6602B
Ratings:
( 527 Reviews )
NSi6602B
Function: Used for Whatsminer power supply repair.
Unit Price: $ 2.15
MOQ: 10    Unit Weight: 0.005 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

The NSi6602 is a family of high-reliability isolated dual-channel gate driver ICs designed to drive power transistors switching up to 2MHz. Each output can source 4A and sink 6A peak current with fast 25ns propagation delay and 5ns maximum delay matching.

Typical common-mode transient immunity (CMTI) of 150kV/us supports system robustness. The driver operates with a maximum supply voltage of 25V, while the input accepts supply voltages from 2.7V to 5V. All supply voltage pins support undervoltage lockout (UVLO) protection.

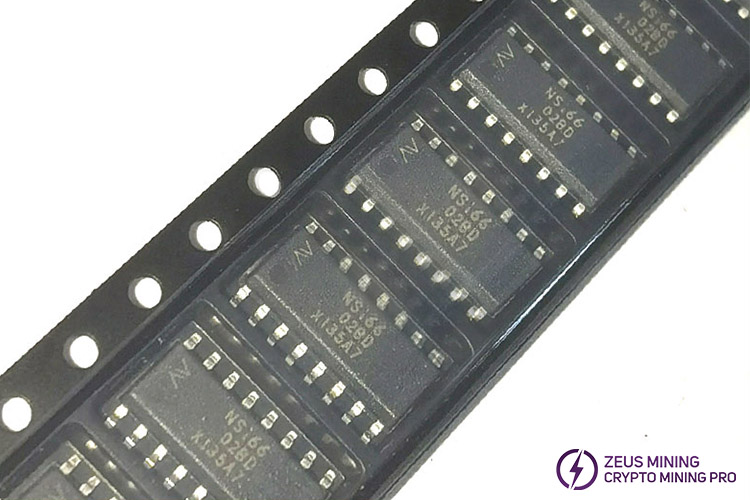

NSi6602B-DSPNR driver

Feature:

• Isolated dual-channel drivers

• Input side supply voltage: 2.7V to 5.5V

• Driver-side supply voltage: up to 25V with UVLO

• 4A peak source and 6A peak sink outputs

• High CMTI: ±150kV/us typical

• 25ns typical propagation delay

• 5ns maximum delay matching

• 6ns maximum pulse width distortion

• Programmable dead time

• Accepts a minimum input pulse width of 15ns

• Working temperature: -40℃~125℃

Application:

• Isolated DC-DC and AC-to-DC power supplies in server, telecom, and industry

• DC-to-AC solar inverters

• Motor drives and EV charging

• UPS and battery chargers

Related product:

NSI6602BD
