D9D300
D9D300
D9D300D9D300
Ratings:
( 527 Reviews )
D9D300
Function: Repair Antminer E9 pro hash board parts.
Unit Price: $ 2
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

D9D300 is a switching voltage regulator chip located on the E9 pro hash board, the chip position is U151. It is often used to replace the faulty chip with the corresponding mark to ensure the normal operation of the hash board.

BD9D300MUV is a synchronous buck-switching regulator with a built-in low-on-resistance power MOSFET. Capable of delivering up to 3 A, the chip operates at a high oscillation frequency with low inductance. The original on-time control system can operate with low power consumption under light load conditions, making it ideal for reducing the device's standby power consumption.

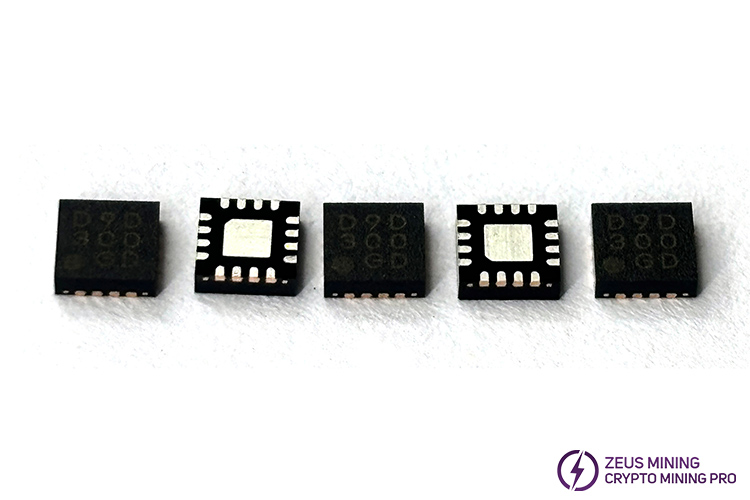

D9D300 chip for sale

Main specifications:

• Input voltage range: 4V to 17V

• Output voltage range: 0.9V to 5.25V

• Output current: 3A (maximum)

• Switching frequency: 1.25MHz (Typ)

• High-side FET on-resistance: 110mΩ (Typ)

• Low-side FET on-resistance: 50mΩ (Typ)

• Shutdown current: 3μA (Typ)

• Operating quiescent current: 20 μA (Typ)

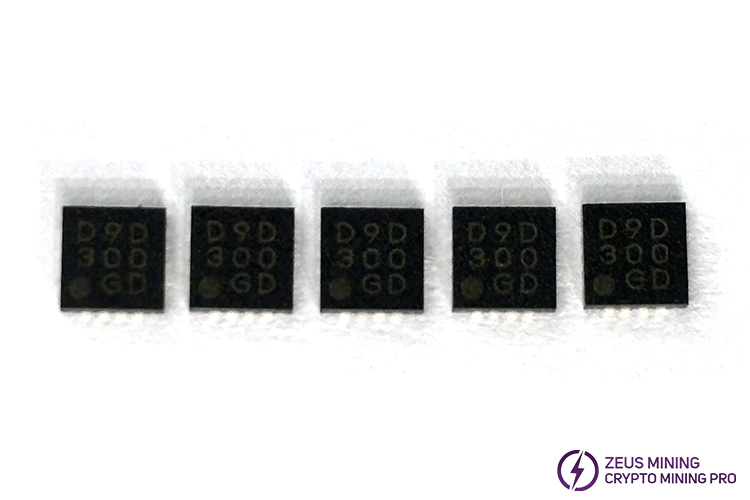

D9D300 buck-switching regulator for E9 pro hash board

Feature:

• Single Synchronous Buck DC/DC Converter

• On-time control

• Light load mode control

• Overcurrent protection (OCP)

• Short circuit protection (SCP)

• Thermal shutdown protection (TSD)

• Undervoltage lockout protection (UVLO)

• Adjustable soft start

• Power normal output

• Overvoltage protection (OVP)

• VQFN016V3030 package backside heat dissipation

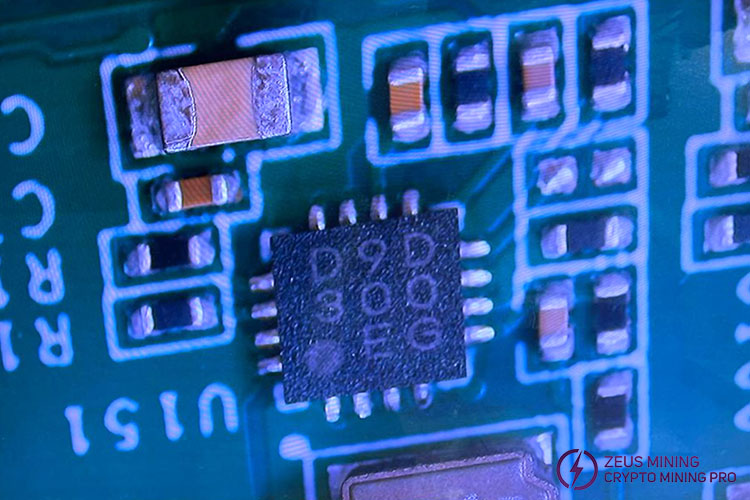

D9D300 chip location
