SGM3756
SGM3756
SGM3756SGM3756
Ratings:
( 537 Reviews )
SGM3756
Function: SGM3756 38V high efficiency boost WLED driver with PWM control.
Unit Price: $ 0.2
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

SGM3756 38V High Efficiency Boost White LED Driver

The SGM3756 is a 38V step-up WLED driver with high efficiency, low EMI, and high output voltage. The boost converter integrates a 40V, 1.5A internal FET and operates at 1.2MHz. Its powerful driving capability can drive single or multiple parallel LED strings and be used as an LED driver to backlight smartphones and tablets. The GM3756 provides excellent line and load regulation and excellent load transient response. SGM3756 also has various protection functions such as LED open circuit protection, OCP protection, and thermal shutdown protection.

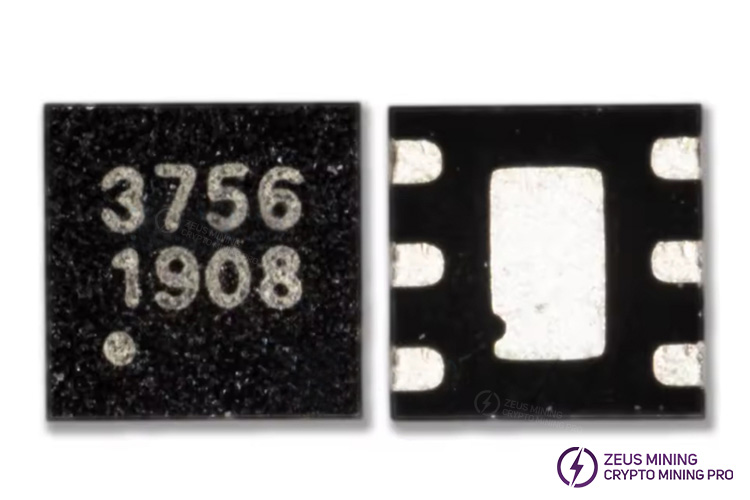

SGM3756 boost converter chip

Feature:

• 1:250 stable luminance dimming

• Reduces EMI by eliminating ringing

• Improved PSRR for waveless lighting

• Input voltage range: 2.7V to 5.5V

• Integrated 40V, 1.5A current-limited MOSFET

• 38V open LED protection for 10 LEDs in series

• 1.2MHz switching frequency

• 200mV reference voltage

• PWM brightness control

• Under voltage protection

• Efficiency up to 90%

• Built-in soft start function

• Thermal shutdown

• -40℃ to +85℃ operating temperature range

• Available in green TDFN-2×2-6L package

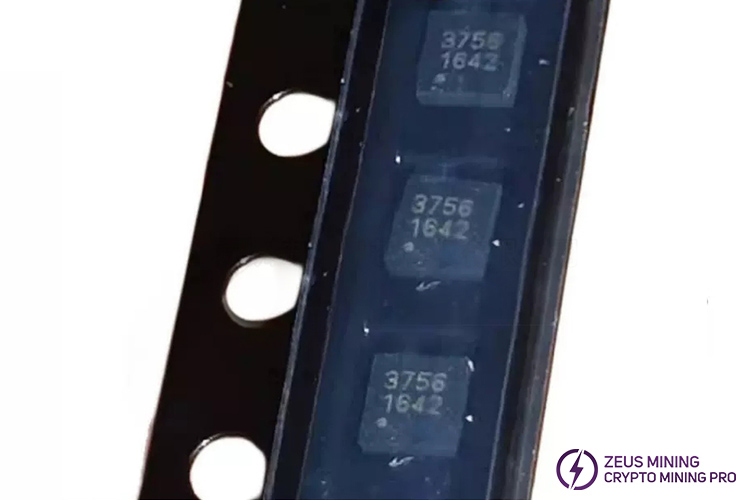

3756 marking chip

Application:

• Whatsminer and Antminer hash boards

• Smart phone backlight

• Tablet backlight

• PDAs, handheld computers, GPS receivers

• Portable media players, portable TVs

• White LED backlight for small and media-size displays
