Telegram : @zeusmining_presalesNY-38 3800V multifunctional withstand voltage tester
The withstand voltage tester can help you test the withstand voltage of NMOS, PMOS, IGBT, triode, bidirectional triode thyristor, unidirectional triode thyristor, Zener diode, LED, rectifier bridge, electrolytic capacitor, etc.
Product Features:
1) Multi-function: This withstand voltage tester has various functions and can be used to test the withstand voltage values of MOS tubes, triodes, IGBTs and diodes, voltage regulator diodes, light-emitting diodes, single thyristors, rectifier bridges, micro resistors, ceramic gas discharge tubes, electrolytic capacitors, etc.
2) Digital panel: This withstand voltage tester has a clear and intuitive digital display panel that can be used during the day, at night, or in other dimly lit environments.
3) Compact and portable: This withstand voltage tester is small and lightweight, making it very convenient to carry and use.
4) High-quality ABS material: This withstand voltage tester is made of high-quality ABS material. It is sturdy and wear-resistant, not easy to damage, and has a long service life.
Product parameters:
Product name: Multifunctional withstand voltage tester
Withstand voltage test range: 0-3800V
Output voltage: 10V-3800V adjustable (±1%)
Output current: 0.01mA--5mA adjustable
Voltmeter resolution: 0.1V below 100V/1V above 100V
Battery capacity: 700mAH
Charging interface: TYPE-C
Charging voltage: 5V (universal mobile phone charging adapter)
Charging current: 680mA
Maximum battery operating current: 1000mA
Host size: 100x70x31mm
Interface introduction:
① Power Switch
② Charging Port
③ LED Indicator
【RED】Charging
【GREEN】Fully charged
【BLUE】Low battery
【PINK】Working
④ Voltage Adjustment
⑤ Negative Electrode
⑥ Positive Electrode
⑦ Current Adjustment
⑧ Test Button
Attention:
1. Voltage Adj. must be 1.5x greater than the withstand voltage of the transistor.
2. Push and hold the test button to adjust voltage.
Test range:

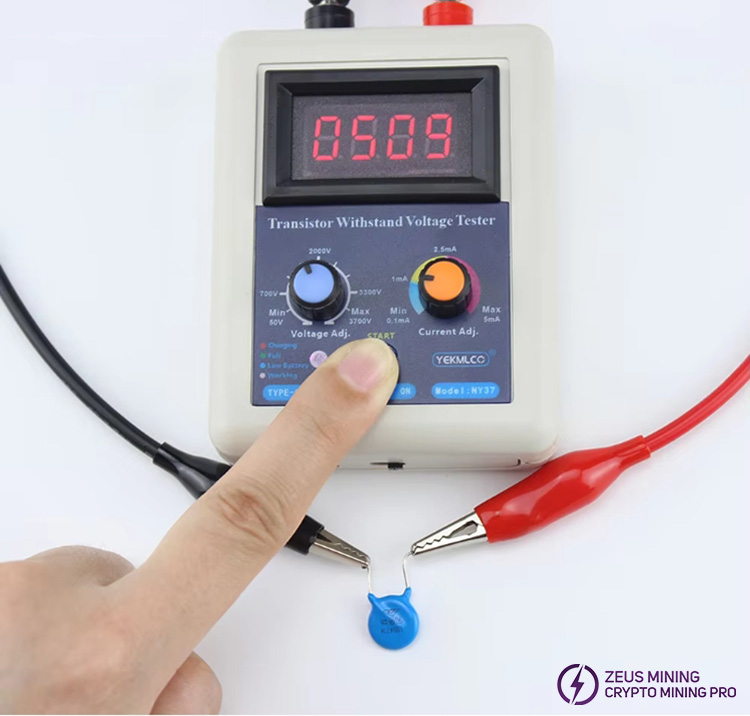

1) It can test the withstand voltage of NMOS / PMOS / IGBT / transistor / unidirectional thyristor / voltage regulator diode / light-emitting diode / rectifier bridge / varistor / ceramic gas discharge tube, electrolytic capacitor, and other components;
2) It can test the insulation voltage of objects such as switches and buttons and the insulation voltage between the two pins of connectors.
3) It can test the insulation voltage between windings in motors, industrial frequency transformers, high-frequency transformers, etc.
