KS universal hash board tester for Iceriver miner

KS hash board test fixture for Iceriver KS0 KS0pro KS1 KS2 KS3 KS3M KS3L KS5L KS5M

The KS test fixture is a tester designed for Iceriver hash board failures. Its test models include KS0, KS0PRO, KS1, KS2, KS3, KS3M, KS3L, KS5L, KS5M, etc. Using this test fixture, you can help the Iceriver hash board quickly detect ASIC chip failures, temperature sensor failures, etc., to repair the hash board quickly. The test chip including P2SG48, P2SM88, P37P57, P38C03, P49K68, etc.

Click to view the usage tutorial: How to use the KS tester to test IceRiver hash boards?

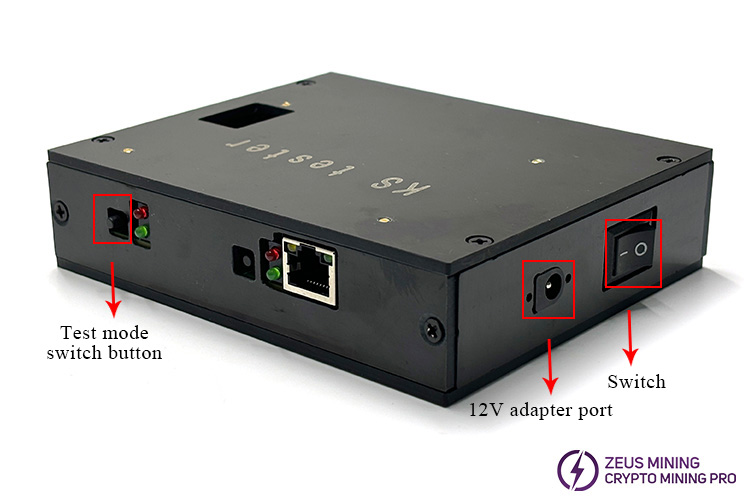

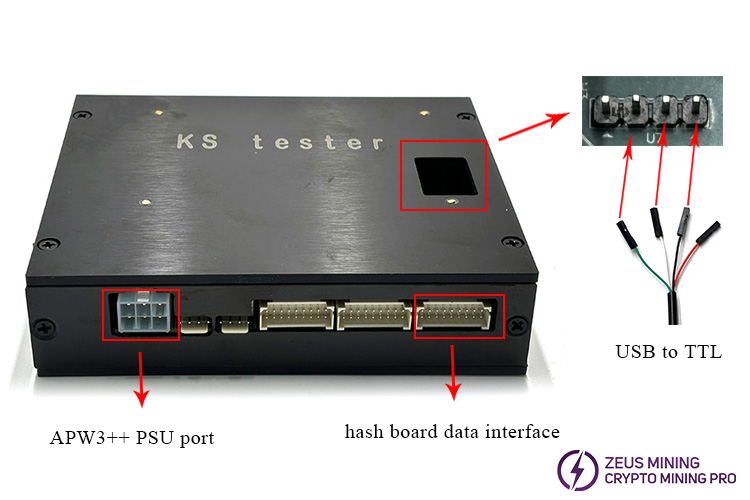

Interface description:

Product advantages:

1. Applicable to a wide range of models, including most Ice river machine models, such as KS0, KS0 PRO, KS1, KS2, KS3, KS3M, KS3L, KS5L, KS5M, etc.;

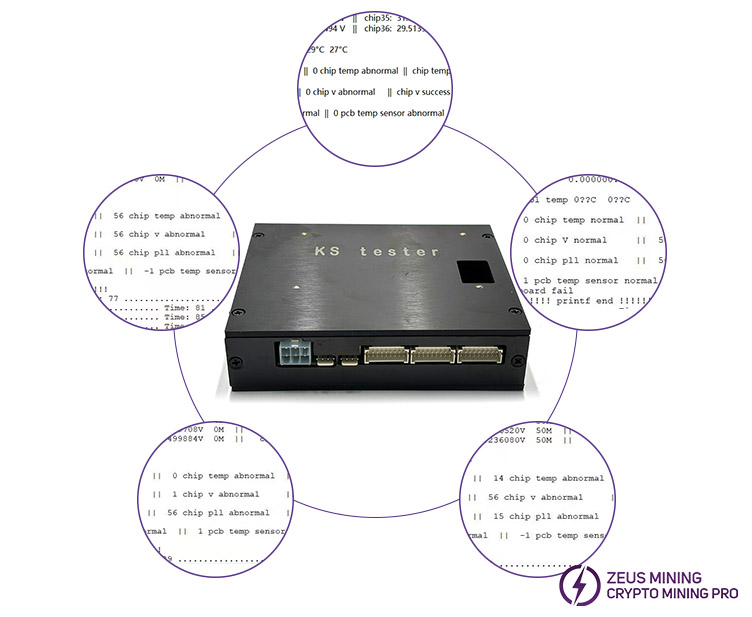

2. Using the KS tester, you can quickly and accurately detect ASIC chip faults, temperature sensor faults, etc., significantly reducing troubleshooting time;

3. Applicable to a wide range of Iceriver ASIC chips, including P2SG48, P2SM88, P37P57, P38C03, P49K68, etc.;

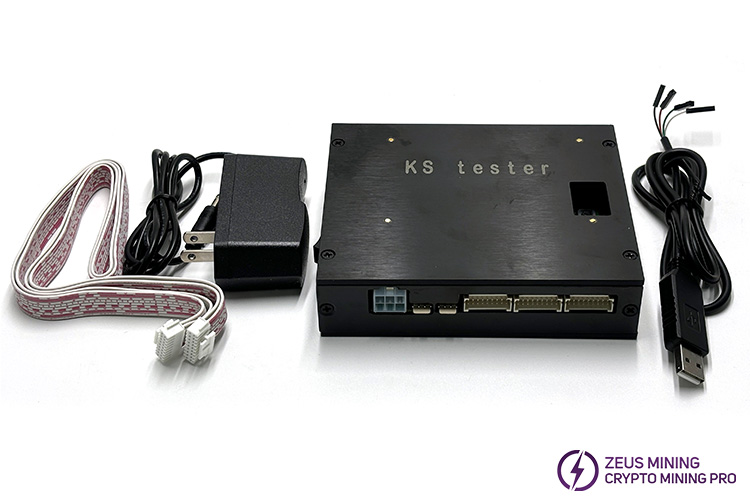

When you purchase the KS tester, we will provide you more accessories, including:

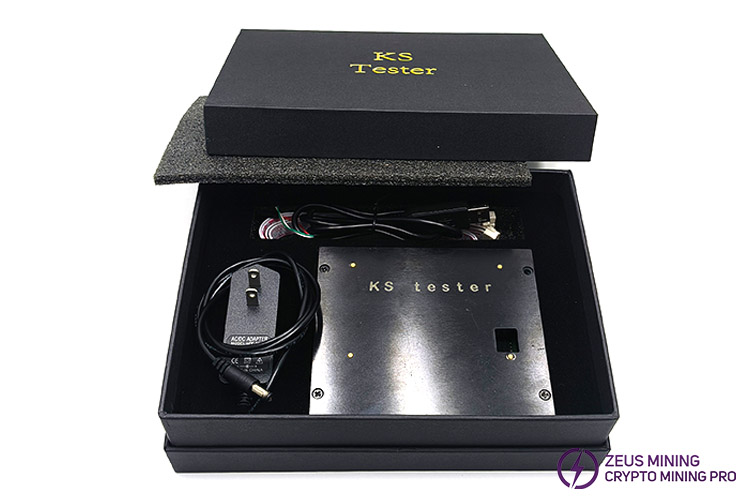

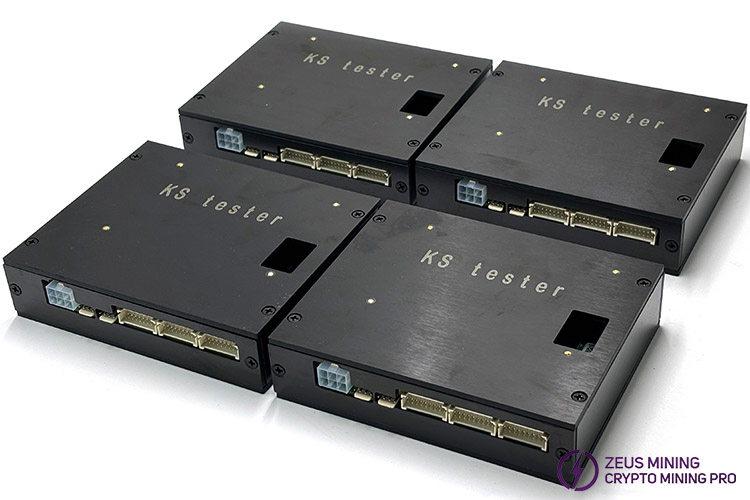

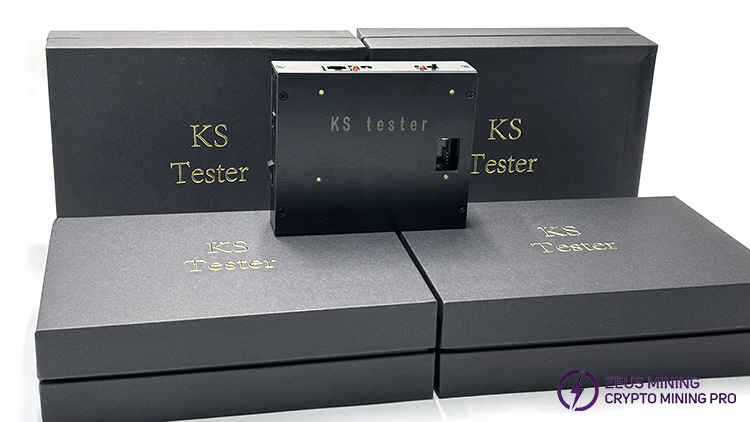

The KS test fixture is equipped with a high-grade elegant black exquisite shell, and the cable ports around it are precise and clear, which can fully protect the internal components of the fixture from damage by dust, complex objects, and static electricity, thereby effectively extending the service life of the test fixture. At the same time, the shell is sturdy and drop-proof and is not afraid of squeezing and bumping.

In addition, to use this test fixture, we also need to cooperate with the KPS3030D power supply, cooling base 1800RPM, and other tools, including:

1) The WANPTEK KPS3030D DC power supply is used to power the Iceriver hash board;

2) The hash board cooling base 1800RPM is used to dissipate heat for the hash board.

3) The Alligator clip power cable 6mm is used to connect the KPS3030D power supply and the hash board.

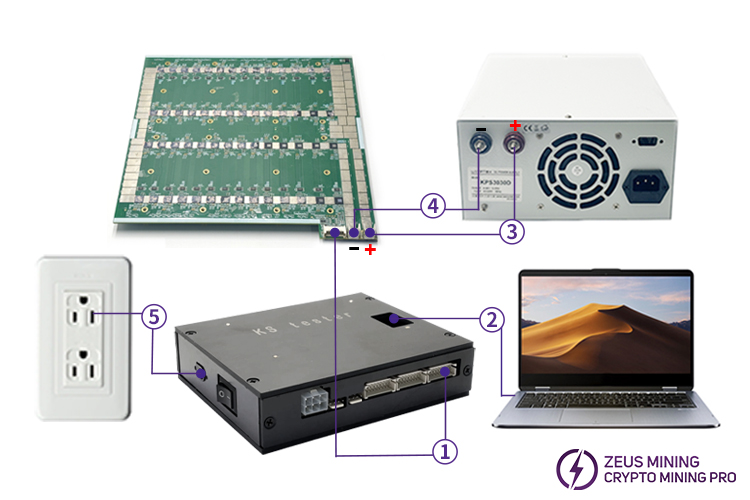

Test fixture connection diagram:

① Test fixture data cable: connected to the test fixture and hash board;

② USB to TTL: connected to the tester and the computer USB port;

③ and ④ Alligator clip power cable 6mm²: connect the positive and negative electrodes of the voltage regulating power supply and the hash board respectively;

⑤ 12V adapter: provide power to the fixture.

We will not assume any responsibility for any damage caused by self-disassembly. If you have any questions during use, please consult our technicians or check the iceriver hash board maintenance manual.
