Avalon Universal Test Fixture

Avalon 1066Pro 1166 1166Pro 1246 1246Pro 1346 1366 1466 1446 Test Fixture

AvalonMiner hash board test fixture is a professional high-quality chip test fixture which can quickly can quickly troubleshoot faulty ASIC chips. This hash board test fixture is suitable for 1466, 1446, 1366, 1346, 1066Pro, 1166, 1166Pro, 1246, 1246Pro and other models.

The specific tester model is based on the ASIC chip model of the hash board. If you are unsure about the test ASIC chip model, please consult the sales.

Product advantages:

1. The fixture is independently developed and sold by ZEUS MINING;

2. It is applicable to a wide range of chips, including A3198S, A3204, A3203, A3202, A3201, A3200, A3200C series, etc.

3. In addition to ASIC chip failures, it can also be used to troubleshoot temperature sensor failures, boost failures, LDO failures, CRC hash rate failures, etc.;

4. Connect the fixture to the computer via a USB to TTL cable to fully view the hash board fault log.

5. The matching foot switch controls the output voltage of the fixture, which is convenient for testing the signal waveform of the hash board.

Test fixture product lists:

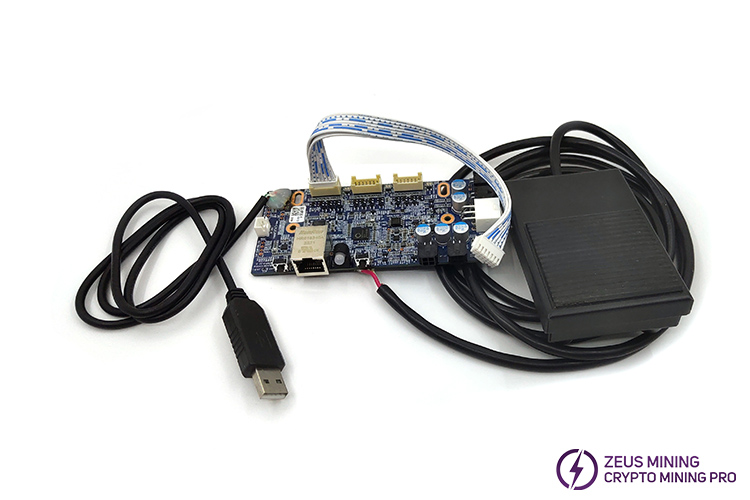

① Avalon 14Pin data cable 30cm * 1

② Avalon tester host * 1

③ USB to TTL * 1

④ Test fixture foot switch * 1

To use this fixture, we also need to use the hash board cooling base 1800RPM, the miner's original power supply, and the Alligator clip power cable 6mm;

Hash board cooling base 1800RPM is used to help the hash board repair and heat dissipation;

The miner's original power supply is used to help the hash board and fixture power supply;

Alligator clip power cable 6mm is used to connect the power supply and hash board;

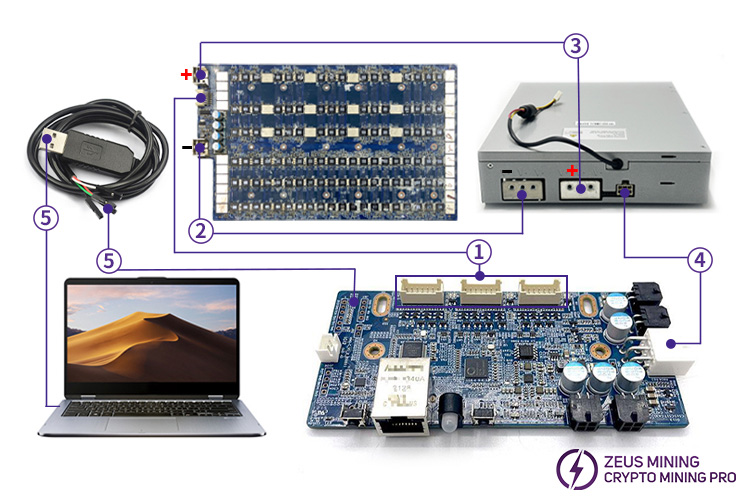

Connection diagram:

① Test fixture cable: connected to the test fixture and hash board;

② and ③ Alligator clip power cable 6mm: connect the positive and negative electrodes of the original power supply and the hash board respectively;

④ Power cord cable: Use the original power supply to power the fixture;

⑤ USB to TTL: connected to the tester and the computer Network or USB port.

How to use Avalon 1066Pro 1166 1166Pro 1246 1246Pro test fixture?

For more information about the product, please click "What is the usage method of the Avalon 1246 1166 1066 pro test fixture?" to view.
