NCP114ASN120T1G CAC 1.2V LDO
NCP114ASN120T1G CAC 1.2V LDO
Ratings:
( 591 Reviews )
NCP114ASN120T1G CAC 1.2V LDO
Function: Replace Antminer S19K PRO hash board 1.2V LDO.
Unit Price: $ 0.25
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8619123969125
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

Antminer S19K pro hash board 1.2V LDO

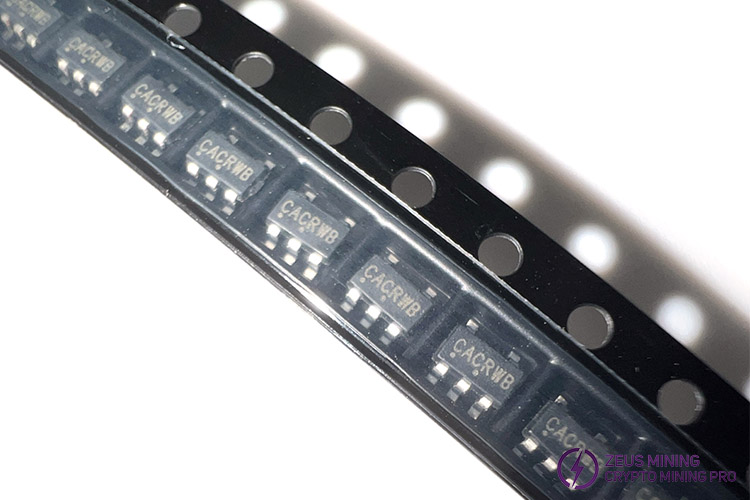

NCP114ASN120T1G is a 300mA 1.2V LDO in TSOP-5 package, commonly used to repair Antminer S19K pro hash boards, it is marked CAC. It provides very stable, accurate voltage and low noise, making it suitable for space-constrained, noise-sensitive applications. To optimize performance in battery-powered portable applications, the NCP114 uses dynamic quiescent current scaling to achieve extremely low IQ consumption at no load.

S19K pro 1.2V LDO chip

Feature:

• Operating input voltage range: 1.7V to 5.5V

• Fixed voltage options available: 1.2V

• Very low quiescent current of Typ. 50μA

• Standby current consumption: Typ. 0.1μA

• Low dropout voltage: 135mV typical at 300mA

• ±1% accuracy at room temperature

• High power supply ripple rejection: 75dB at 1kHz

• Thermal shutdown and current limit protection

• Stable when using 1F ceramic output capacitor

Application:

• Antminer S19Kpro hash board repair

• PDAs, mobile phones, GPS, smartphones

• Wireless handsets, wireless LAN

• Portable medical equipment

• Other battery powered applications
