Antminer hash board tester for E9 E9pro

Antminer E9 E9pro hash board chip test fixture detects and troubleshoots the fault location of hash board ASIC chips to quickly find faulty chips and help miners quickly repair hash boards. The fixture can greatly reduce the troubleshooting time of faulty chips. It is an essential tool for repairing Antminer E9 E9pro hash boards. In addition, we also provide technical support, welcome to consult.

Product advantages:

1. The fixture is independently developed and sold by ZEUS MINING;

2. In addition to ASIC chip failures, it can also be used to troubleshoot temperature sensor failures, PIC failures, no hash rate and low hash rate failures, etc.;

3. Connect the fixture to the computer via a USB to TTL cable to view the hashboard fault log in full.

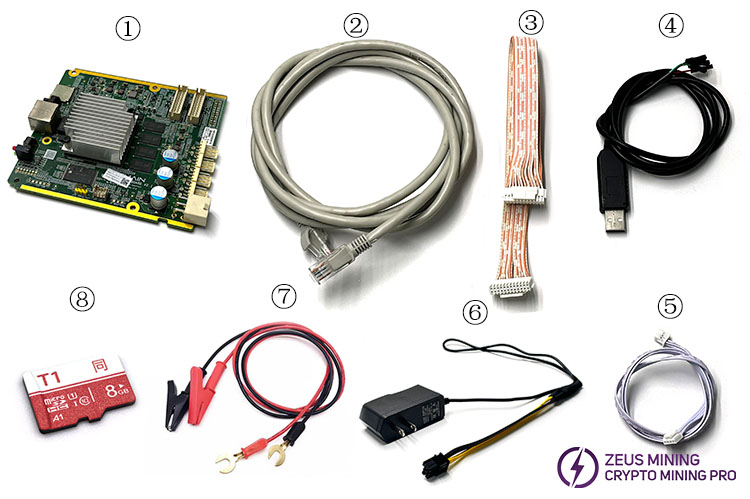

Part lists:

①: Tester host * 1

②: Network cable * 1

③: Test fixture cable 60cm * 1

④: USB to TTL cable * 1

⑤: 4pin voltage regulation cable 60cm * 1

⑥: DC 12V adapter cable * 1

⑦: Alligator clip to U-type terminal cable * 2（black and red）

⑧: TF programming card (including test file) * 1

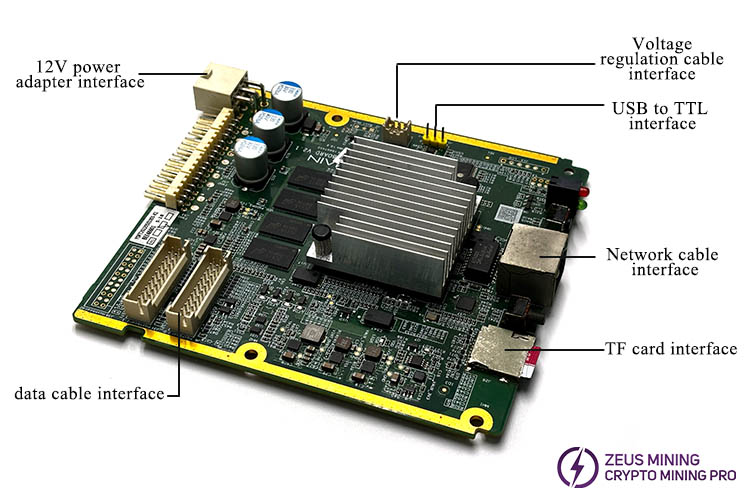

Interface description:

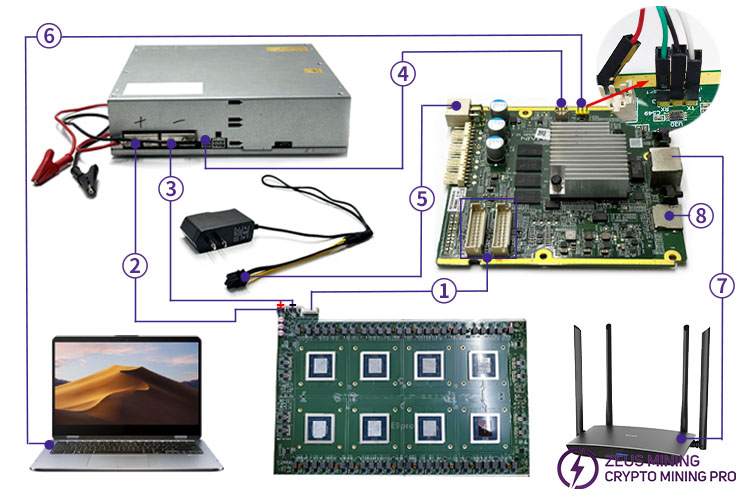

Test fixture connection diagram:

① Test fixture cable interface: connected to the test fixture and hash board;

② and ③ Alligator clip power cable 6mm: connect the positive and negative electrodes of the voltage regulating power supply and the hash board respectively;

④ Voltage regulation cable: connected to the test fixture and power supply;

⑤ 12V adapter cable: provide power to the fixture;

⑥ USB to TTL cable: connected to the tester and the computer;

⑦ Network cable: connected to the tester and the router；

⑧ TF card solt: Insert the TF card with the corresponding test file.

It is recommended that it be used with an adjustable speed 4x120mm fan cooler to help the E9 or E9pro hash board dissipate heat quickly.

In addition, we also provide the E9pro hashboard repair guide to help everyone quickly repair hash board failures.
