| Unit Price: | $ 0.81 |
WhatsApp : +8618623251355

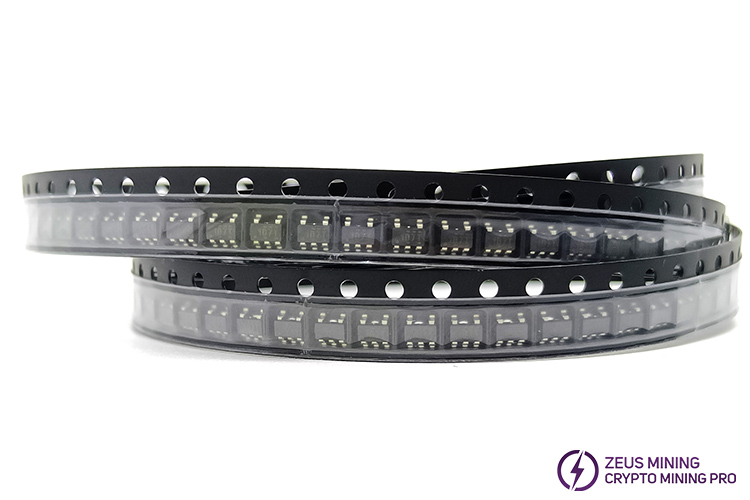

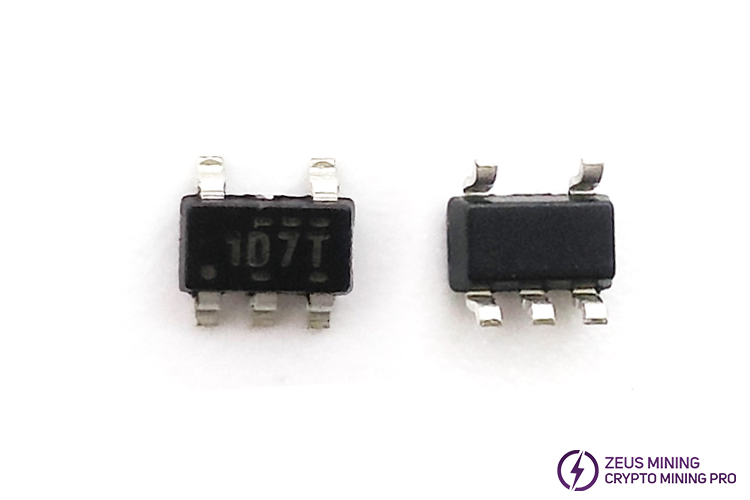

Telegram : @zeusmining_presalesThe TLV74318PDBVR for the Antminer hash board is a low-dropout regulator (1.8V LDO). It consumes a low quiescent current and provides excellent line and load transient performance, combined with low noise. A foldback current limit, shutdown, and thermal protection are provided.
The TLV743P low-dropout linear regulator(LDO)is an ultra-small, low quiescent current LDO that sources 300mA with good line and load transient performance. The device provides a typical accuracy of 1%.
The TLV743P is designed to be stable with a small output capacitor with a value of1uF. The TLV743P device provides foldback current control during device power up and enabling. This functionality is especially important in battery-operated devices. The TLV743P provides an active pulldown circuit to quickly discharge output loads when the device is disabled.
Product Type: LDO Voltage Regulator
Installation style: SMD/SMT
Package/Enclosure: SOT-23-5
Output voltage: 1.8V
Output current: 300mA
Number of outputs: 1 Output
Polarity: Positive
Quiescent current: 34uA
Minimum input voltage: 1.4V
Maximum input voltage: 5.5V
PSRR/Pulse Rejection - Standard Value: 50dB
Output Type: Fixed
Minimum operating temperature: - 40℃
Maximum operating temperature: +125℃
Dropout voltage: 122mV
Series: TLV743P
Dropout Voltage - Maximum: 270mV
Line Regulation: 1mV
Load Regulation: 16mV
Operating temperature range: -4℃
Product: LDO Voltage Regulators
Subcategory: PMIC - Power Management ICs
Type: Linear LDO Regulator
Voltage regulation accuracy: 1 %
