Home > ASIC Miner Repair > Antminer Parts > Chips > LDO chip >

TLV62568DBVR 14VF
TLV62568DBVR 14VF
TLV62568DBVR 14VFTLV62568DBVR 14VF
Ratings:
( 527 Reviews )
TLV62568DBVR 14VF
Function: Antminer S17e hash board DC-DC converter chip.
Unit Price: $ 0.6
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

TLV62568DBVR 14VF step-down converter 12V to 3.3V

The silkscreen of the TLV62568 is 14VF 0.8V, a 0.8V switching regulator PLL tube; the TLV62568 is a synchronous step-down DC-DC converter optimized for high efficiency and compact solution size. The device has an integrated switch capable of delivering up to 1 A of output current. It is one of the cores powered by the Antminer BM1396AB ASIC chip on the Antminer s17e hash board.

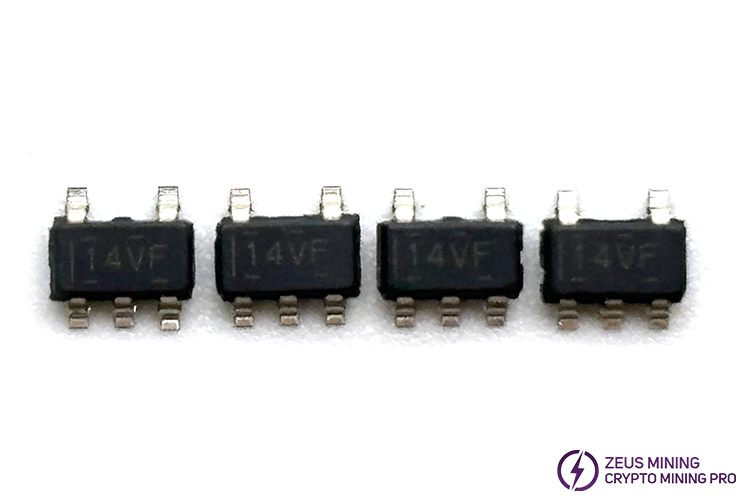

14VF TLV62568

At medium to heavy loads, the device operates inpulse width modulation (PWM) mode with 1.5-MHz switching frequency. At light load, the device automatically enters Power Save Mode (PSM)to maintain high efficiency over the entire load current range. In shutdown, the current consumption is reduced to less than 2 uA.

The TLV62568 provides an adjustable output voltage via an external resistor divider.An internal soft start circuit limits the inrush current during startup.

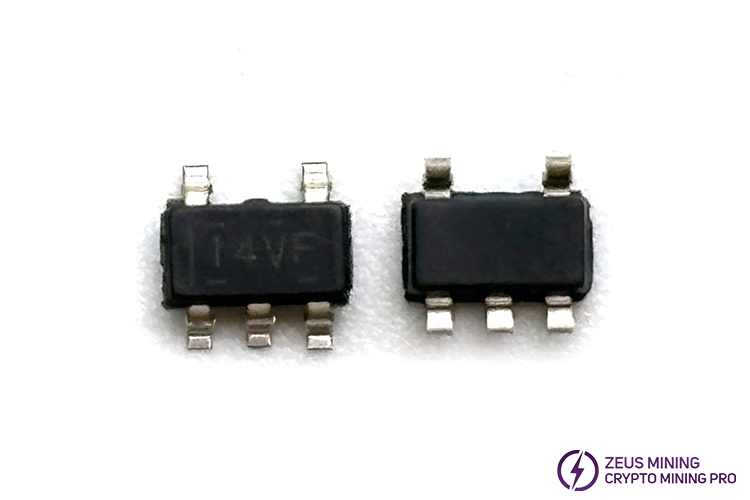

Antminer s17e buck converter chip 14VF

Features

1. Up to 95% Efficiency

2. LowRDS(ON) Switches 150 m/100 m

3. 2.5V to 5.5V Input Voltage Range

4. Adjustable Output Voltage from 0.6 V to VIN

5. Power Save Mode for Light Load Efficiency

6. 100% Duty Cycle for Lowest Dropout

7. 35uA Operating Quiescent Current

8. 1.5MHz Switching Frequency.

9. Power Good Output

10. Over Current Protection

11. Internal Soft Startup

12. Thermal Shutdown Protection

13. Available in SOT Package

14. Pin-to-Pin Compatible with TLV62569

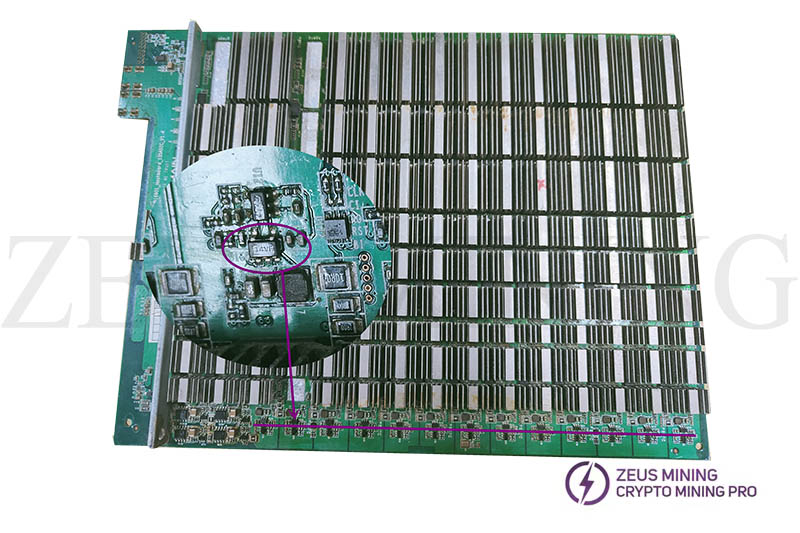

TLV62568DBVR buck converter chip for S17e hash board
