GS7155NV

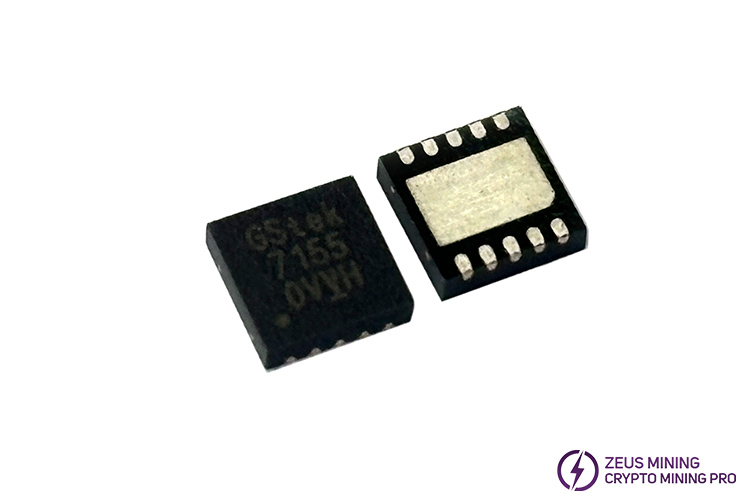

GS7155NV LDO for Antminer E9pro hash board repair

The GS7155NV can deliver up to 3A output current with a typical dropout voltage of only 240mV using internal n-channel MOSFETs. The linear regulator uses a separate VDD supply to power the control circuitry and drives the Internal n-channel MOSFETs. The output voltage is adjustable from 0.8V to the voltage very close to VIN.

The GS7155NV allows the use of low-ESR ceramic capacitors as low as 10uF. Moreover, the IC performs well on both line and load transient responses.

The GS7155NV provides foldback over the current limit and thermal shutdown to prevent the linear regulator from being damaged. In addition, built-in soft-start minimizes the input power source stress by reducing capacitive inrush current on start-up.

Product features:

Maximum 3A low-dropout voltage regulator

Ultra low dropout voltage

Typically 240mV at 3A output current

High output accuracy over line, load and temperature

Build-in soft-start

Excellent startup under load from 0 to 3A

Power-oK output function

Foldback over current protection and thermal shutdown

0.1μA (typ) shutdown supply current

Low ESR output capacitor (Multi-layer chip capacitors (MLCC))

Applicable:

Vout pull low resistance when disabling

Lead-Free and RoHS-compliant applications

Notebook PC applications

Motherboard applications

Low voltage logic supplies

Microprocessor and chipset supplies

Graphic cards

Cordless phones
