Unit Price: | $ 2.6 |

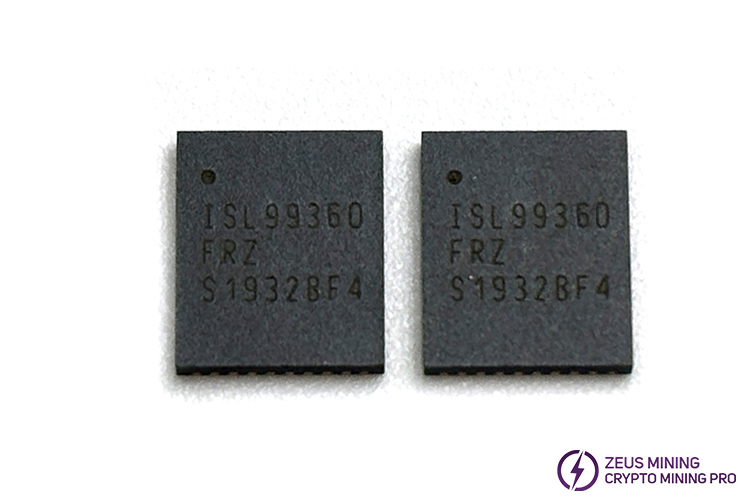

ISL99360FRZ-T for Antminer Z15 hash board repair
ISL99360 is a gate and power driver chip on the Antminer Z15 hash board, which integrates high-precision current and temperature monitors that can feed back to controllers and frequency multipliers to complete multi-phase DC/DC systems. It improves system performance and reliability with integrated fault protection for UVLO, HFET short circuits, overtemperature, and overcurrent. An open-drain fault reporting pin simplifies handshaking between the SPS and the controller and can disable the controller during startup and fault conditions.
Feature:
• Input range: +3.0V to +16V
• Supports 60A DC current
• 3.3V compatible tri-state PWM input
• Downhill current sensing
• ±3% accurate current monitor (IMON) with REFIN input
• 8mV/°C temperature monitor with OT flag
• Dedicated low-side FET control input
• Comprehensive fault protection for high system reliability
- High-side FET short circuit and overcurrent protection
- Over-temperature protection
- VCC and VIN Undervoltage Lockout (UVLO)
• Open drain fault reporting output
• Switching frequency up to 1.25MHz
Application:
• Antminer Z15 hash board repair
• High frequency and efficient VRM and VRD
• Microprocessor core, graphics and memory regulator
• High-density VR for servers, networks, and cloud computing
• POL DC/DC converters and video game consoles
