Unit Price: | $ 0.1 |

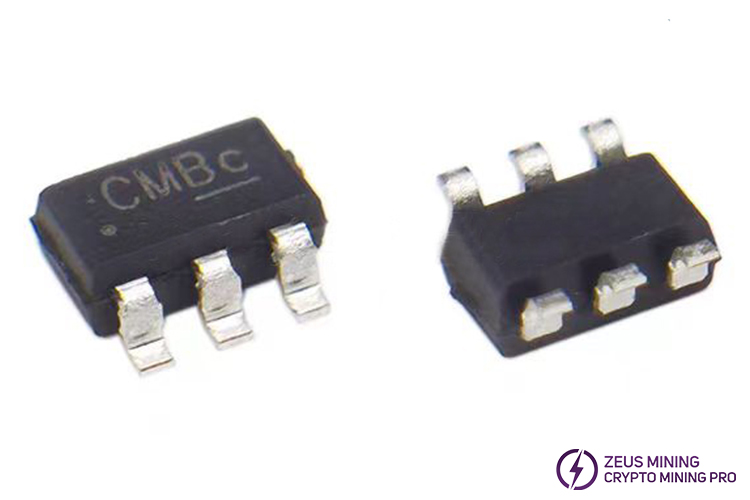

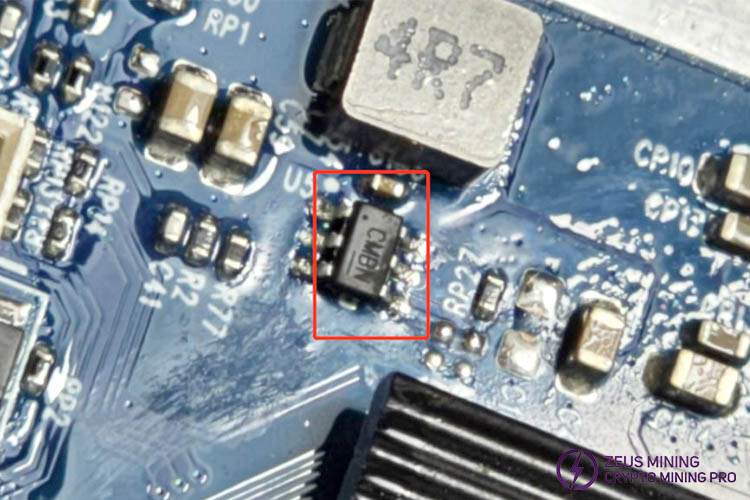

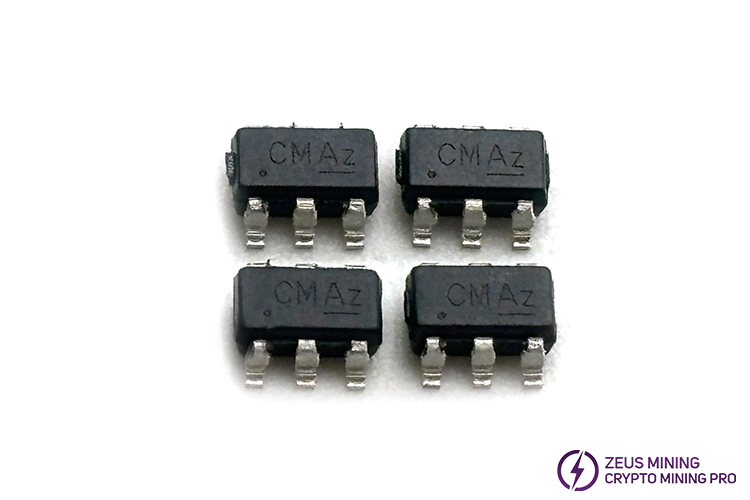

The ETA8120S2G is a wide input range, high efficiency, high-frequency DC-DC step-down switching regulator on the Whatsminer CB6 V10 control board, capable of delivering up to 2A output current. Its silk screen mark is CM** and is packaged in SOT23-6. This current mode PWM-controlled converter has a fixed switching frequency of 500KHz, allowing the use of small external components. The ETA8120S2G also uses a proprietary control scheme that switches the device into power-saving mode at light loads, thereby extending the range of high-efficiency operation.
Feature:
• Wide input range: 4.2V-18V
• High-efficiency PFM mode at light loads
• Able to provide 2A
• No external compensation required
• Current mode control
• Thermal shutdown and UVLO
• Excellent load and line transient response
• Available in SOT23-6 package
Application:
• Whatsminer CB6 V10 control board
• LCD TV
• Set-top box
• Portable TV
