I. Overview

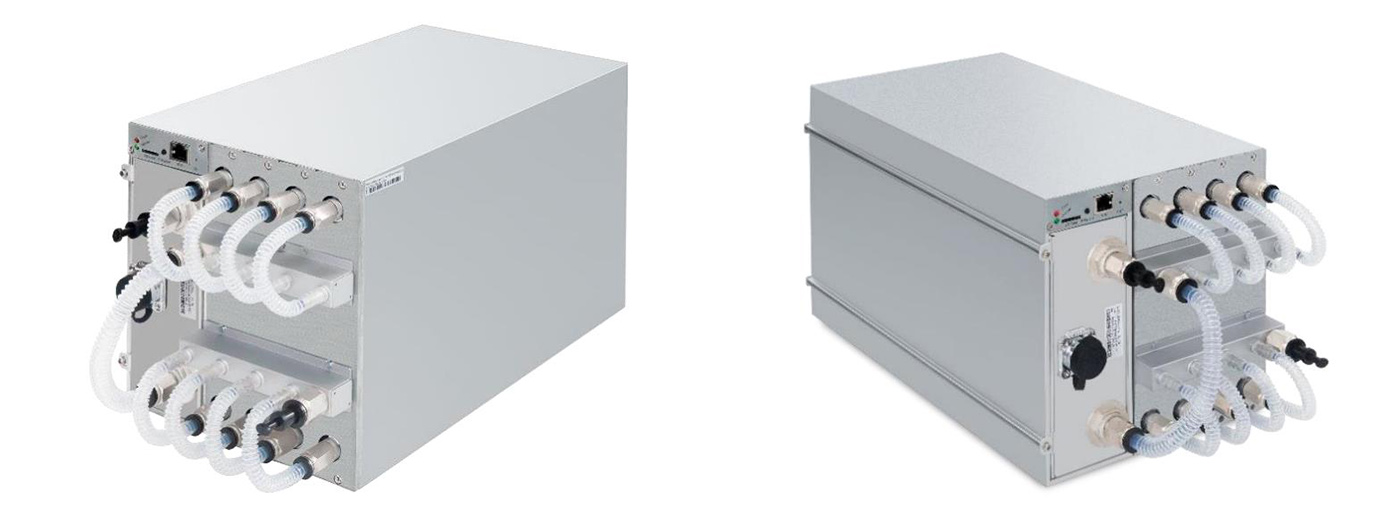

The S19 Pro Hydro miner is one of Bitmain’s newest 19 hydro miner series versions. Power supply APW11 is part of the S19 Pro Hydro miner. All S19 Pro Hydro miners are tested and configured before shipping to ensure easy setup.
Caution:
a. Please refer to the layout above to place your goods in usage in case of any damage.
b. DO NOT remove any screws and cables tied to the product.
c. Please note that the actual miner shall prevail.
d. There must be an external specific Surge Protection device complying with IEC/EN 61643-11 either in front of the power supply or outside the end system (in a separate distribution box or as part of the building installation).
e. Do not plug or remove the device when it is powered on.
f. The external power supply shall have a disconnecting device, which can disconnect L1&L2&L3 simultaneously.
g. The S19 Pro Hydro miner shall be used simultaneously with the ANTSPACE HK3.
1. S19 Pro Hydro miner components

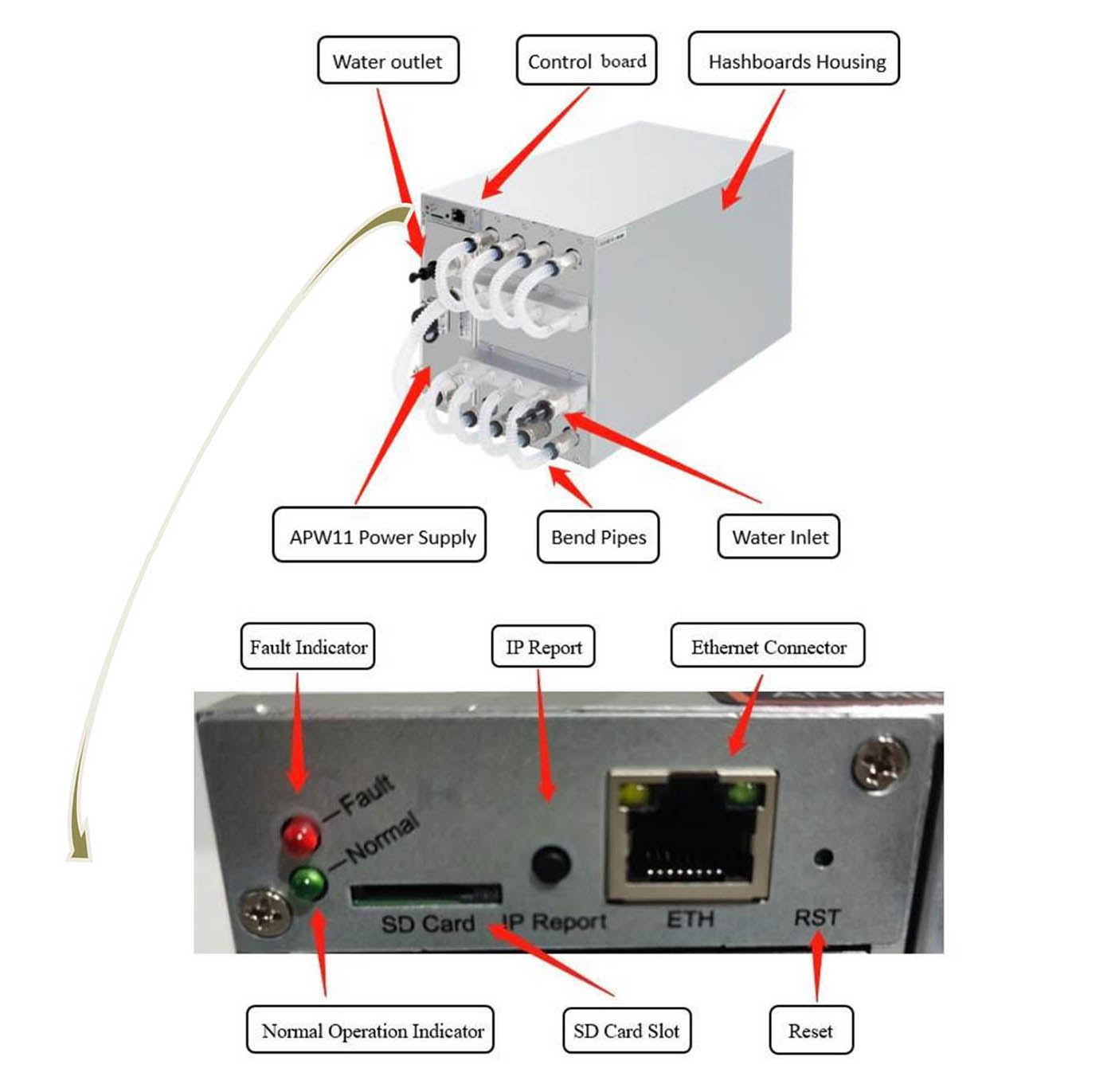

The main components and control board of S19 Pro Hydro miners are shown in the following figure:

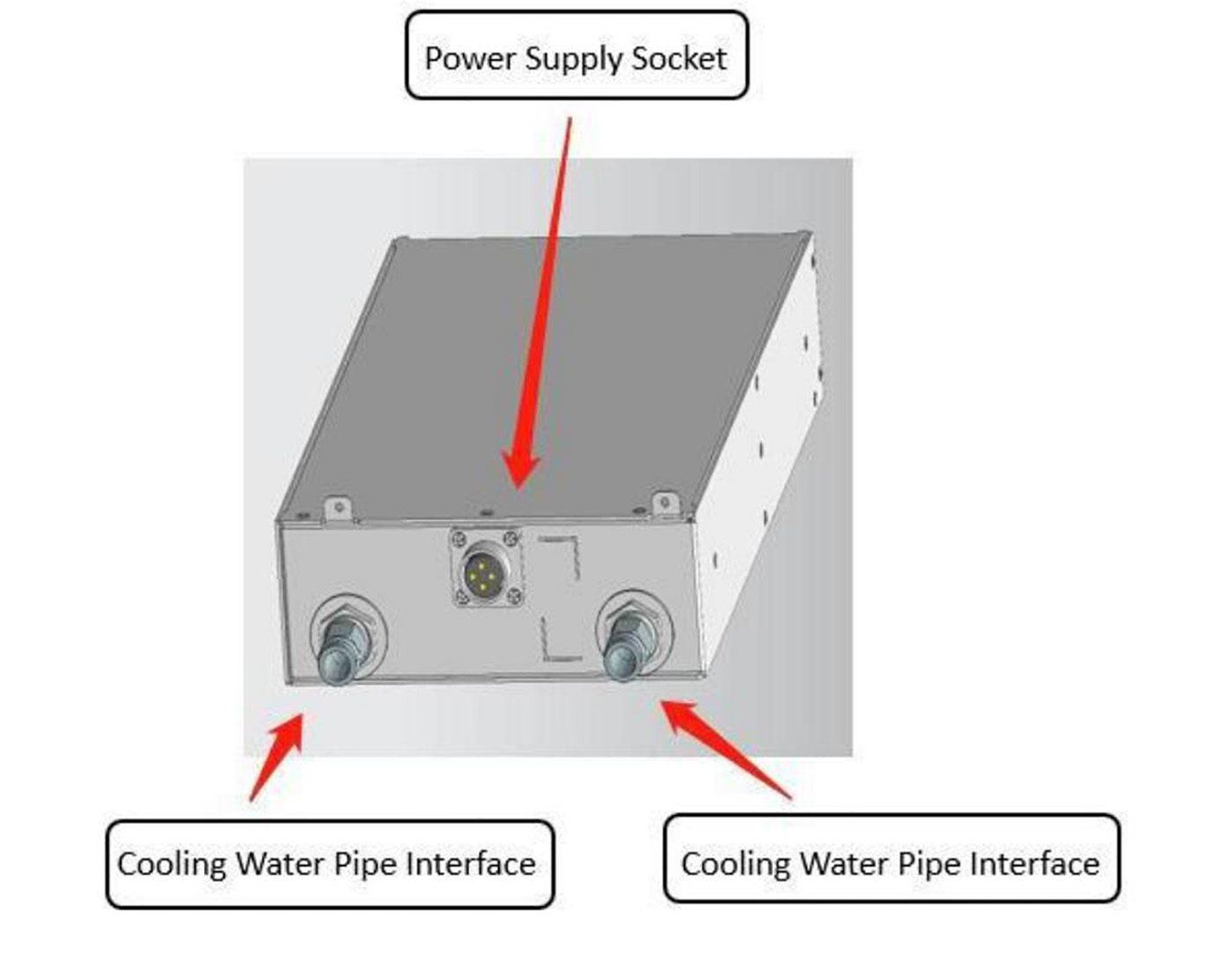

APW11 Power Supply:
Note:
Power supply APW11 is part of the S19 Pro Hydro miner. For detailed parameters, please refer to the specifications below.
2. Miner Specifications
Product Glance | Value | ||
Version | S19 Pro Hydro | ||
Model | 208-A | ||
Crypto Algorithm/Coins | SHA256/BTC/BCH | ||
Hashrate, TH/s | 154.5 ± 3% | 162 ± 3% | 169.5 ± 3% |
Power on wall@Tj65°C, Watt (1-1) | 4558± 5% | 4780± 5% | 5000 ± 5% |
Power efficiency on wall @Tj65°C, J/TH (1-1) | 29.5 ± 5% | 29.5 ± 5% | 29.5 ± 5% |
Detailed Characteristics | Value |
Power Supply | |
Power supply AC input voltage, Volt (2-1) | 342~418 |
Power supply AC Input Frequency Range, Hz | 47~63 |
Power supply AC Input current, Amp(2-2) | 30 |
Hardware Configuration | |
Network connection mode | RJ45 Ethernet 10/100M |
Miner Size (Length*Width*Height, w/o package), mm | 410*196*209 |
Miner Size (Length*Width*Height, with package), mm | 570*316*430 |
Net weight, kg | 15.2 |
Gross weight, kg | 17.5 |
Environment Requirements | |
Operation temperature, °C (2-3) | 0~40 |
Inlet water temperature, °C | 20-40 |
Water flow L/min | 8±10% |
Water pressure bar | ≤3.5 |
Storage temperature, °C | -20~70 |
Operation humidity(non-condensing), RH | 10~90% |
Notes:
1) Inlet water temperature;
2) Caution: Wrong input voltage may probably cause miner damage;
3) Three-phase AC input, 10A per wire;
4) Operation altitude is recommended below 2000m.
II. Setting up the Miner
To set up the Miner:
The file IP Reporter.zip is supported by Microsoft Windows only.
1. Download the following file: IP Reporter.zip. Read the article How to use IP Reporter? to learn more.
2. Extract the file.
The default DHCP network protocol distributes IP addresses automatically.

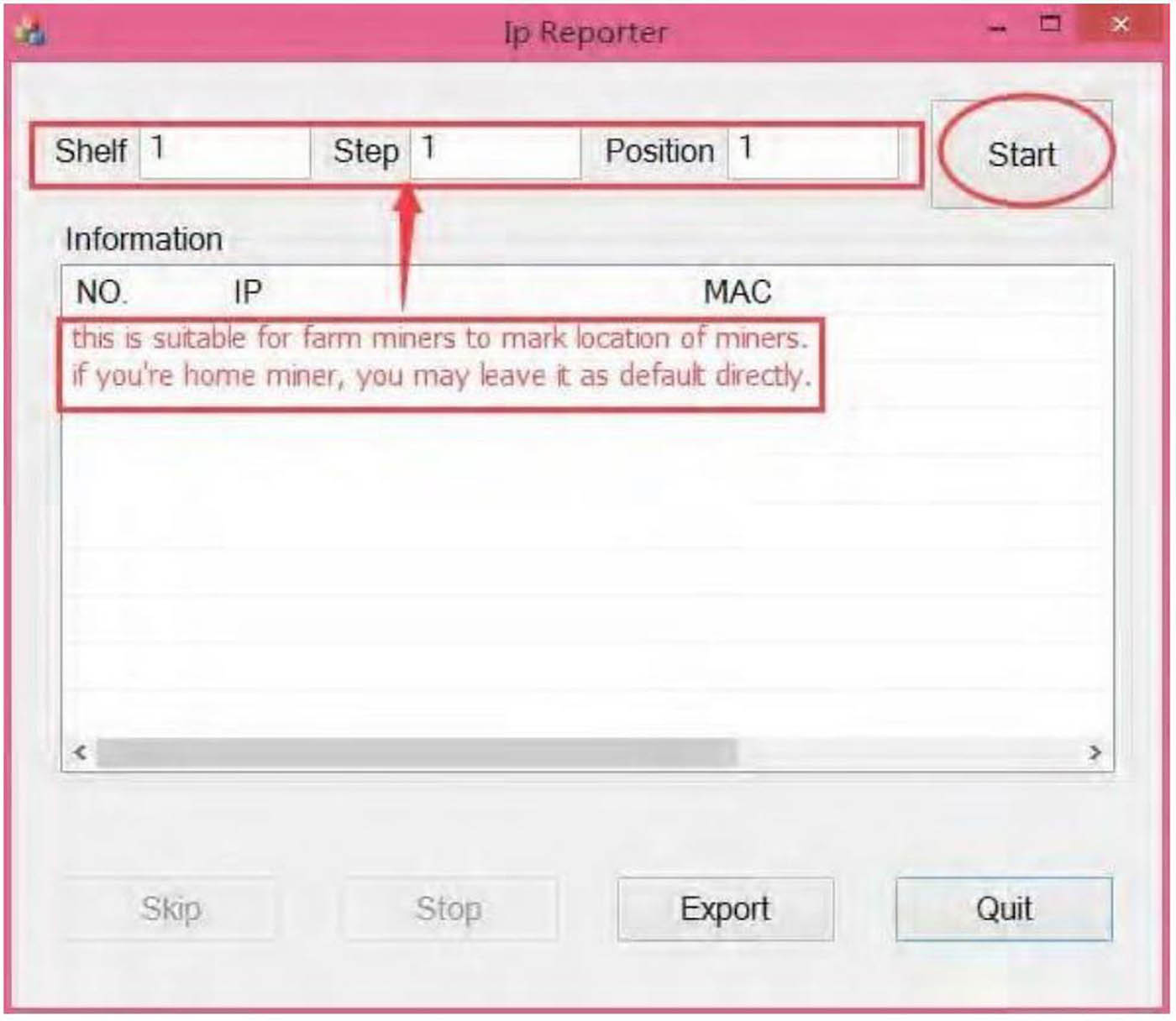

3. Right-click IP Reporter.exe and run it as Administrator.
4. Select one of the following options:
a. Shelf, Step, Position – suitable for farm miners to mark the location of the miners.
b. Default – suitable for home miners.
5. Click Start

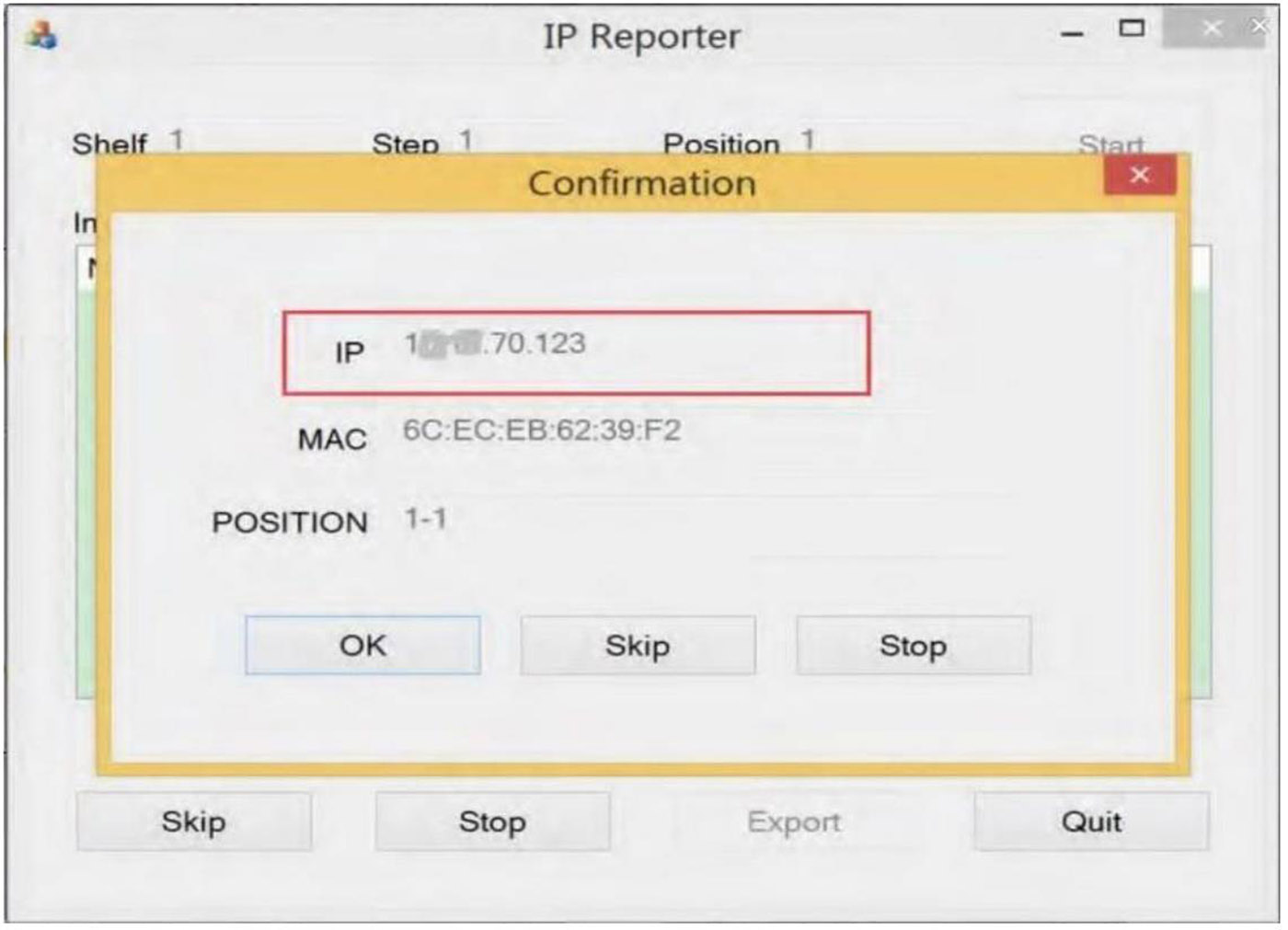

6. On the control board, click the IP Report button. Hold it down until it beeps (about 5 seconds). The IP address will be displayed in a window on your computer screen.
7. In your web browser, enter the IP address provided.
8. Proceed to log in using root for both the username and password.

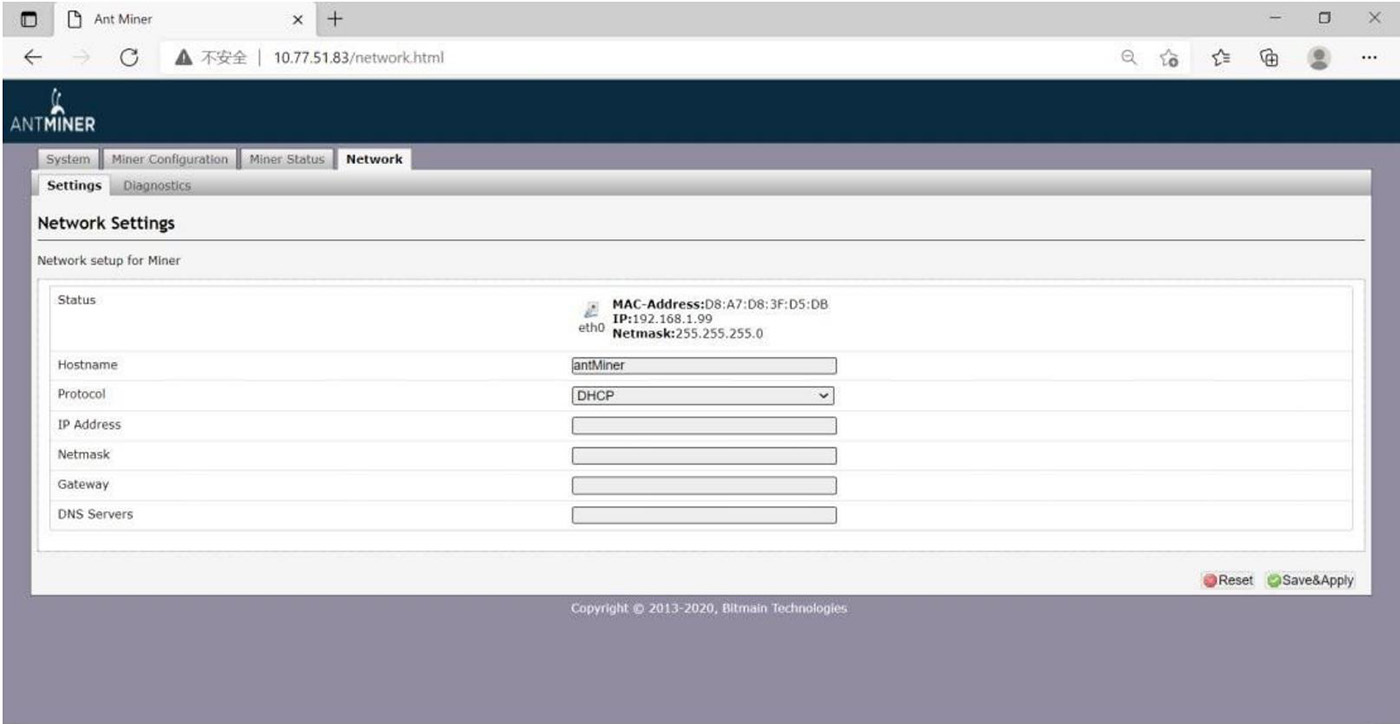

9. In the Protocol section, you can assign a Static IP address (optional).
10. Enter the IP address, Subnet mask, gateway, and DNS Server.
11. Click “Save.”
12. Click Gateway and DNS Server to learn more about them.
III. Configuring the Miner
Setting up the Pool

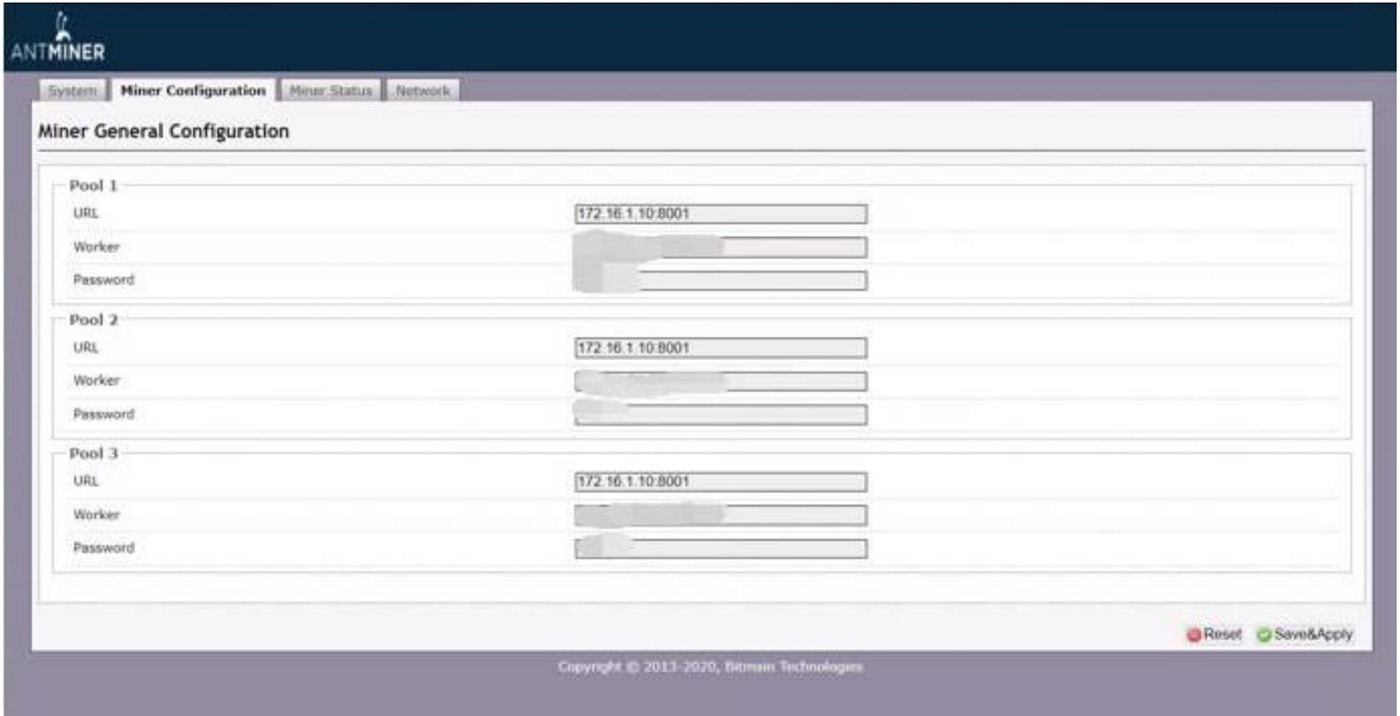

1. Click the configuration below.
2. Set the options according to the following table.
Option | Description |
Mining address | Enter the address of your desired pool. The S19 Pro Hydro miners can be set up with three mining pools, with decreasing priority from the first pool (pool 1) to the third pool (pool 3). The pools with low priority will only be used if all higher priority pools are offline. |
Name | Your worker ID on the selected pool. |
Password | The password for your selected worker. |
3. Click Save after the configuration.
IV. Monitoring Your Miner

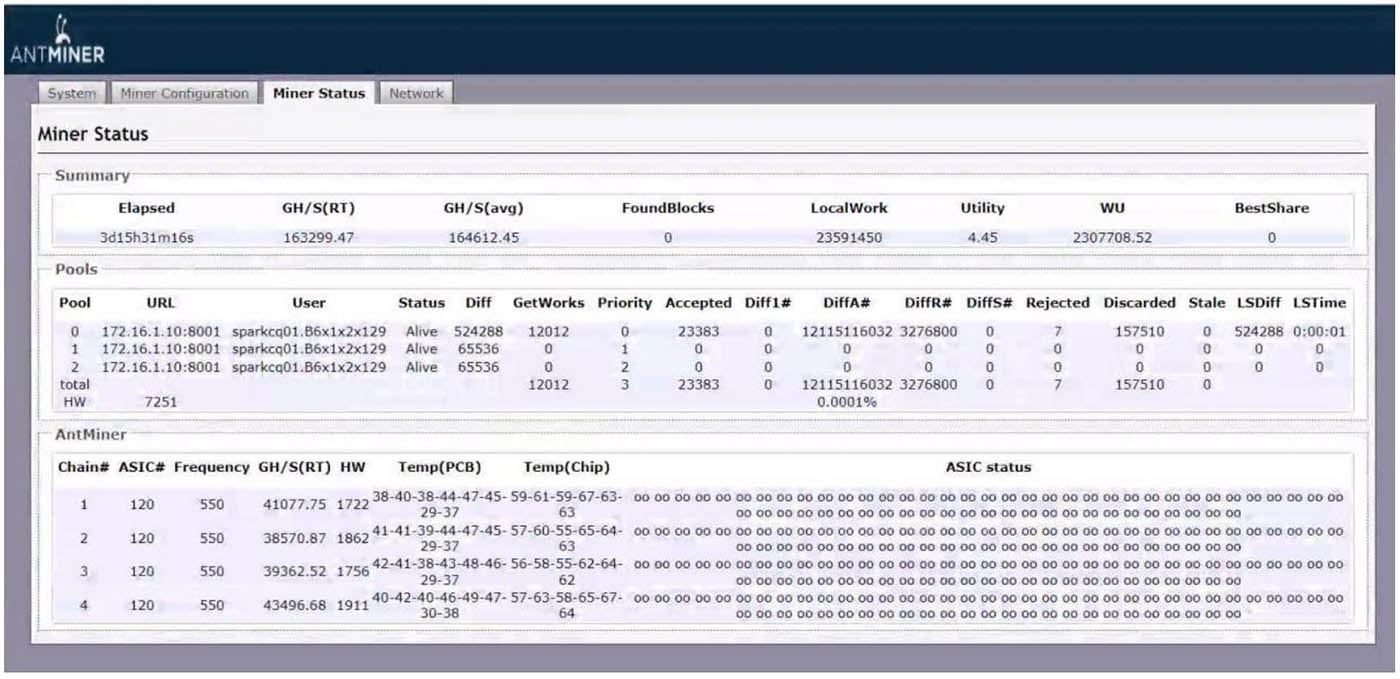

To check the operating status of your miner (taking S19 Pro Hydro 162T as an example):
1. Click the status below to check the miner status.
Note: The frequency of the S19 Pro Hydro miner is fixed with the value 550 MHz. The firmware will stop running when the Temp (PCB) reaches 80℃, or the water temperature is either greater than 65℃ or lower than 20℃; there will be an error message “Fatal Error: Temperature is too high!” shown on the Bottom of the Kernel log page.
2. Monitor your miner according to the descriptions in the following table:
Option | Description |
Number of chips | Number of chips detected in the chain. |
Frequency | ASIC frequency setting. |
GH/S(RT) | Hash rate of each hash board (GH/s). |
Temp(PCB) | The temperature of each hash board (°C). (Applied only to the miner with fixed frequency) |
Temp(Chip) | The temperature of the chips on each hash board (°C). |
ASIC status | One of the following statuses will appear: O - indicates OK X - indicates error - - indicates dead |
V. Administering Your Miner
1. Checking your firmware version
Check steps:

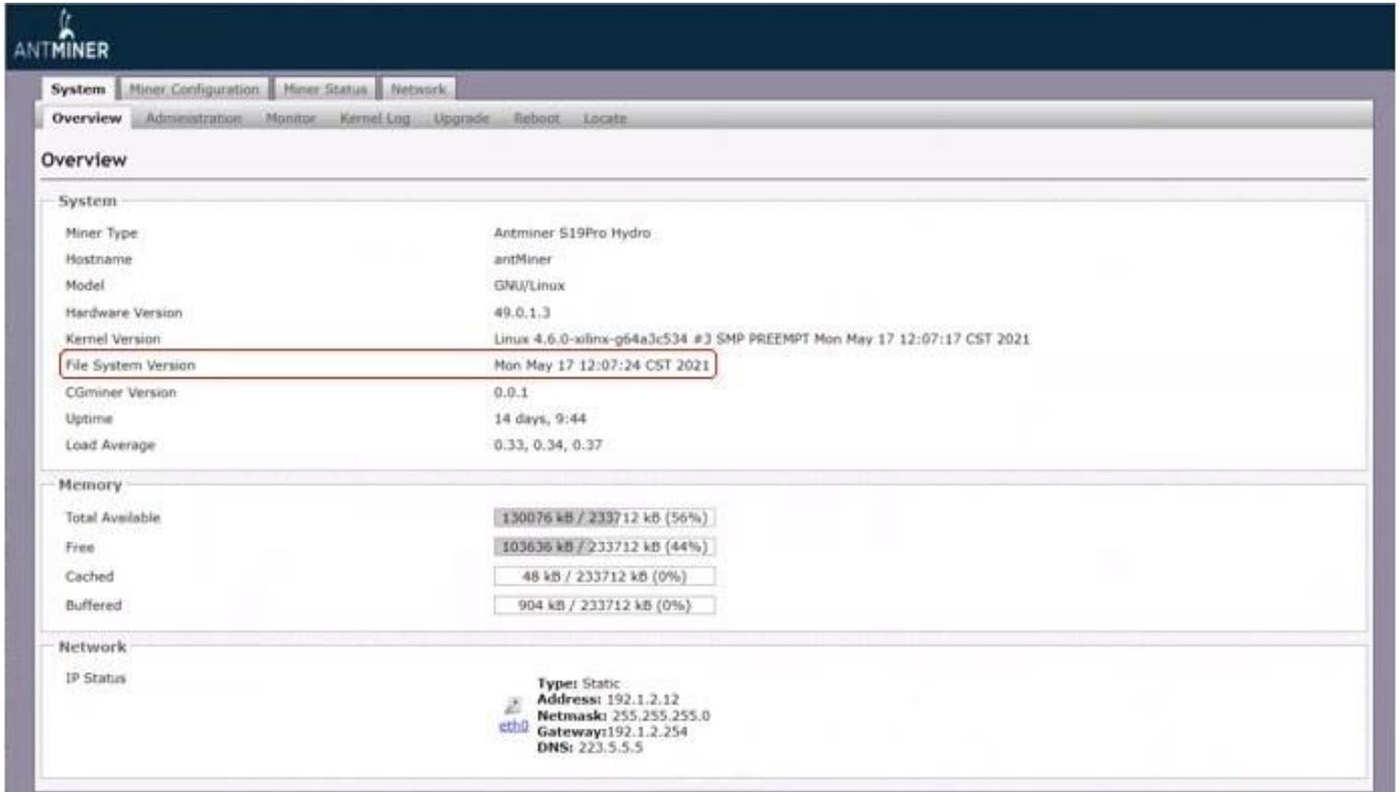

1) Enter the backstage of your miner, and find the firmware version on the bottom.
2) File System Version displays the date of your miner's firmware. In the example below, the miner is using firmware version 20210517.
2. Upgrading your system
Make sure that the S19 Pro Hydro miner remains powered during the upgrade process. If power fails before the upgrade is completed, you will need to return it for repair.

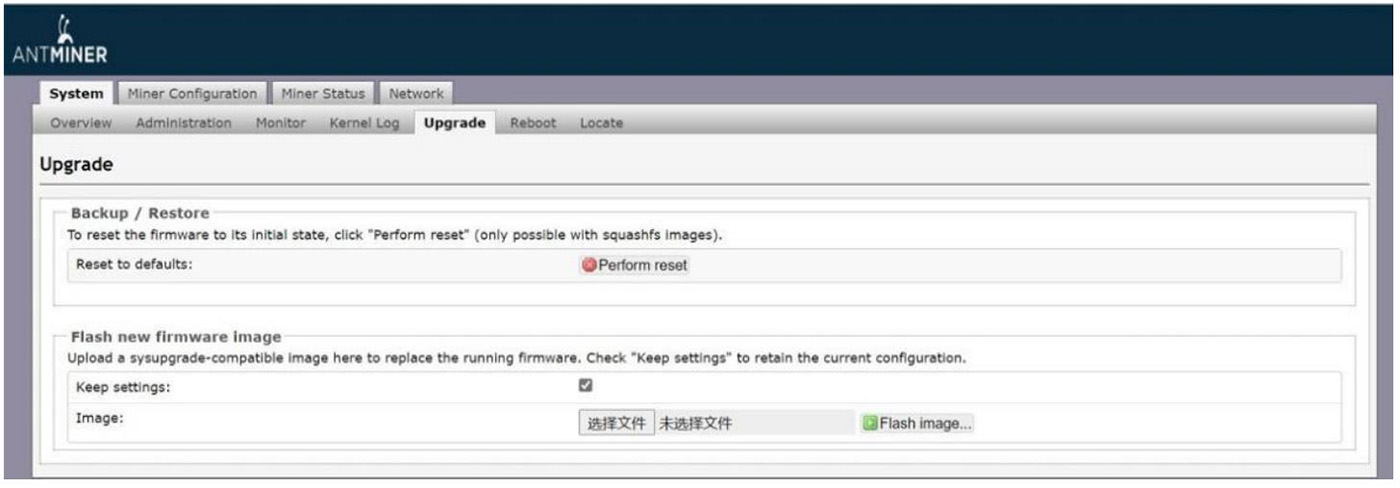

Upgrade steps:
1) In System, click Firmware Upgrade.
2) For keep settings:
a. Select the check box to keep your current settings (default).
b. Clear the check box to reset the server to default settings.
3) Click the Browse button and navigate to the upgrade file. Select the upgrade file, then click Flash image. A message appears notifying you if the S19 Pro Hydro firmware can be upgraded and, if yes, will then proceed to flash the image.

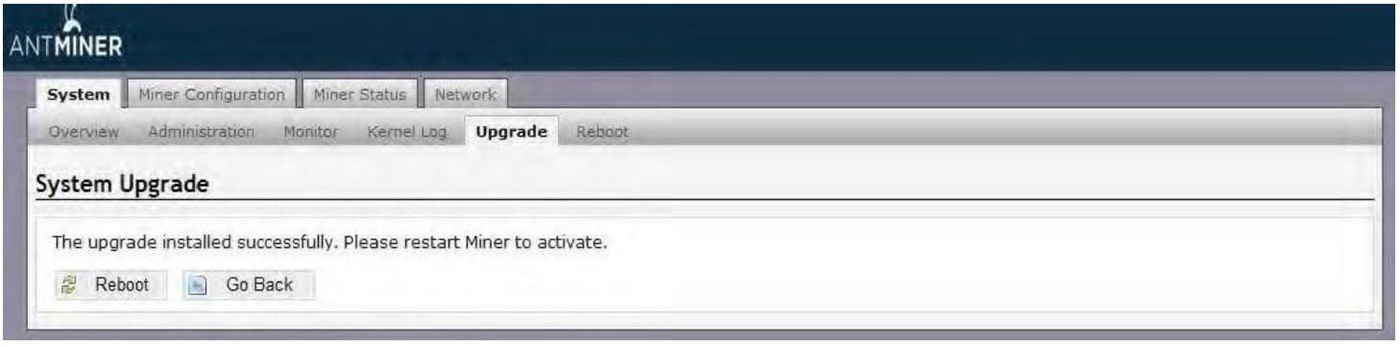

4) When the upgrade is completed, the following message appears:
5) Click one of the following options:
a. Reboot - to restart the miner with the new firmware.
b. Go Back - to continue mining with the current firmware. The miner will load the new firmware the next time it is restarted.
3. Modifying your password

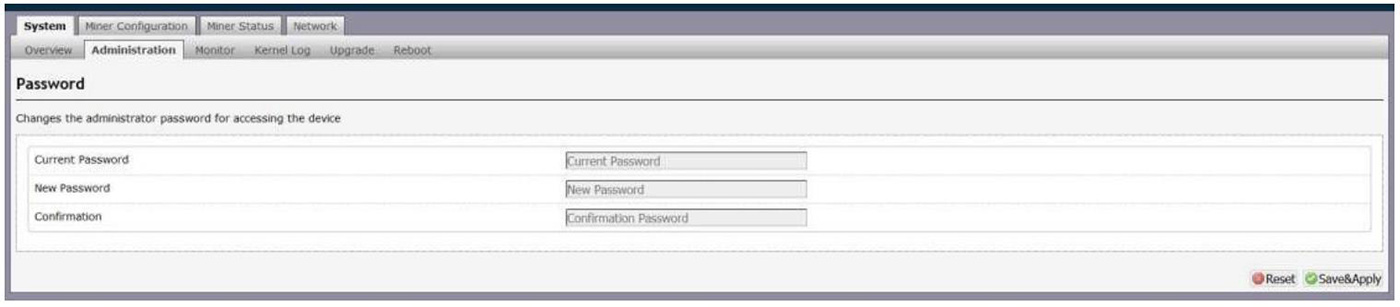

1) In System, click the Administration tab.
2) Set your new password, then click Save & Apply.
4. Restoring initial settings
1) Turn on the miner and let it run for 5 minutes.
2) Press and hold the Reset button for 10 seconds on the control front board.
Resetting your miner will reboot it and restore its default settings. In addition, the red LED will flash once every 15 seconds if the reset is operated successfully.
VI. Environmental Requirements
Please run your miner by the following requirements:
1. Basic Environmental Requirements:
1) Climatic conditions:
Description | Requirement |
Operating Temperature | -20-50℃ |
Operating Humidity | 20-90%RH (non-condensing) |
Storage Temperature | -20-70℃ |
Storage Humidity | 5-95%RH（non-condensing） |
Altitude | <2000m |
2) Site requirements of the miner running room:
a. Please keep the miner running room away from industrial pollution sources:
b. The distance between heavy pollution sources such as smelters and coal mines should be more than 5km.
c. The distance should be more than 3.7km for moderate pollution sources such as chemical, rubber, and electroplating industries.
d. The distance should be more than 2km for light pollution sources such as food and leather processing factories. If unavoidable, the site should be chosen in the perennial upwind direction of the pollution source.
e. Please do not set your location within 3.7km from the seaside or the salt lake. If unavoidable, it should be built as airtight as possible, equipped with air conditioning for cooling.
3) Electromagnetic environmental conditions:
a. Please keep your site away from transformers, high-voltage cables, transmission lines, and high-current equipment; for example, there should be no high-power AC transformers (>10KA) within 20 meters and no high-voltage power lines within 50 meters.
b. Please keep your site away from high-power radio transmitters; for example, there should be no high-power radio transmitters (>1500W) within 100 meters.
2. Other environmental requirements:
The miner running room shall be free of explosive, magnetically conductive, and corrosive dust. The requirements of mechanical active substances are shown below:
1) Requirements of mechanical active substances
Mechanical Active Substance | Requirement |
Sand | <= 30mg/m3 |
Dust (suspended) | <= 0.2mg/m3 |
Dust (deposited) | <=1.5mg/m2h |
2) Requirements of corrosive gas
Corrosive Gas | Unit | Concentration |
H2S | ppb | < 3 |
SO2 | ppb | < 10 |
Cl2 | ppb | < 1 |
NO2 | ppb | < 50 |
HF | ppb | < 1 |
NH3 | ppb | < 500 |
O3 | ppb | < 2 |
Note: ppb (part per billion) refers to the unit of concentration; 1ppb stands for the volume ratio of part per billion.
